High-Quality Variable Speed Lathe & Universal Milling Machine ZX6350Z

2017 High quality Variable Speed Lathe - Universal Milling Drilling Machine ZX6350Z – Hoton

Short Description:

MILLING DRILLING MACHINE FETARURES: 1.small,flexibility 2.X ,Y axis power feed 3.Vertical and horizontal multifunctional drilling and milling machine 4.Gear drive milling head 5.Three axis hardened treatment. SPECIFICATIONS: MODEL ZX6350C ZX6350Z Max.drilling dia(mm) 50;30 50;30 Spindle taper MT4;R8;ISO30 MT4;R8;ISO30;ISO40 Max.vertical milling dia(mm) 25 25 Max.boring dia(mm) 120 120 Max.tapping dia(mm) M16 M16 Distance spindle to table sur...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

We thinks what clients think, the urgency of urgency to act from the interests of a client position of theory, allowing for greater quality, lessen processing costs, price ranges are much more reasonable, won the new and outdated shoppers the support and affirmation for Universal Milling Machine , Copy Of Flat-Surface Grinder , Cnc Lathe Tck6340 , We never stop improving our technique and high quality to help keep up using the enhancement trend of this industry and meet your gratification effectively. In case you are intrigued in our items, please call us freely.

2017 High quality Variable Speed Lathe - Universal Milling Drilling Machine ZX6350Z – Hoton Detail:

MILLING DRILLING MACHINE FETARURES:

1.small,flexibility

2.X ,Y axis power feed

3.Vertical and horizontal multifunctional drilling and milling machine

4.Gear drive milling head

5.Three axis hardened treatment.

SPECIFICATIONS:

MODEL		ZX6350C	ZX6350Z
Max.drilling dia(mm)		50;30	50;30
Spindle taper		MT4;R8;ISO30	MT4;R8;ISO30;ISO40
Max.vertical milling dia(mm)		25	25
Max.boring dia(mm)		120	120
Max.tapping dia(mm)		M16	M16
Distance spindle to table surface(mm)		100-480(8)	140-490(8)
Spindle speeds range(rpm)(steps)	Vertical	115-1750(8)	60-1500(8)
Spindle speeds range(rpm)(steps)	Horizontal	40-1300(12)	40-100(12)
Spindle travel(mm)		120	120
Table size(mm)		1120X280;1000X280	1120X280;1000X280
Table travel(mm)		600X260	600X260
Motor(KW)	Vertical	0.85	1.5
Motor(KW)	Horizontal	1.5/2.2	2.2
N.W/G.W(kgs)		1200/1350	1200/1350
Overall dimensions(mm)		1352x1285x2130	1352x1285x2130

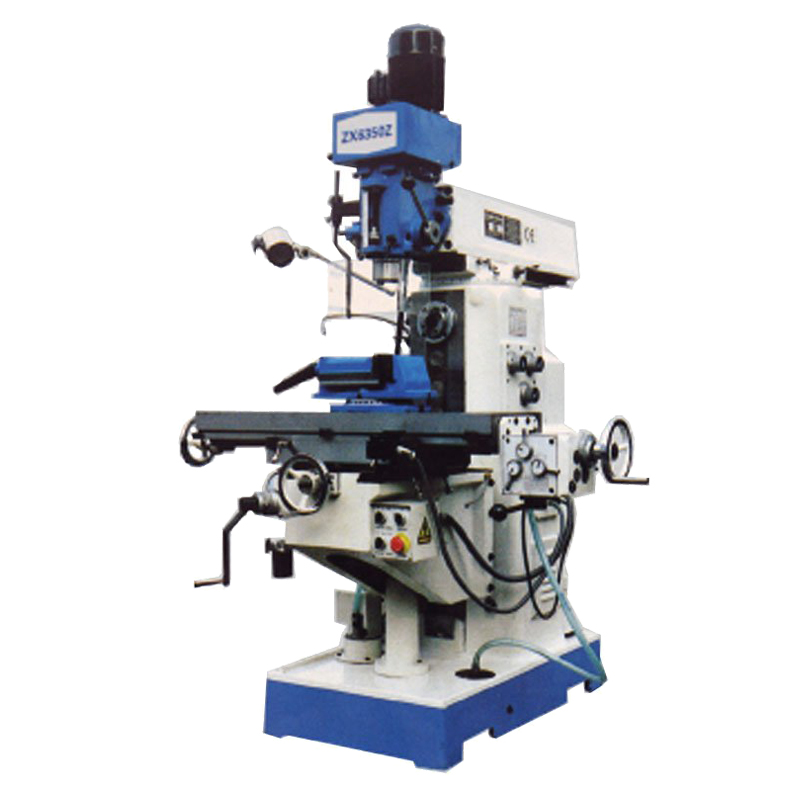

Product detail pictures:
