2017 Latest Design Horizontal Shaper Machine - Bench Lathe-CZ1340V CZ1440V – Hoton Detail:

VARIABLE SPEED LATHE FEATURES
VARIABLE SPEED
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gearbox
Enough strong power motor
ASA D4 camlock spindle nose
Various threads cutting functions available
SPECIFICATIONS:

ITEM		CZ1340V	CZ1440V	CZ1237V
Swing over bed	mm	φ330	φ355	φ305
Swing over carriage	mm	φ195	φ220	φ173
Swing over gap	mm	φ476	φ500	φ440
Width of bed-way	mm	186	186	182
Distance between centers	mm	1000	1000	940
Spindle taper		M.T.5	M.T.5	M.T.5
Spindle bore	mm	φ38	φ38	φ38
Step of speed		Variable	Variable speed	Variable
Range of speed	rpm	Low 70~480	low : 70~480	Low 70~520
Range of speed	rpm	high 480~2000	high: 480-2000	High 520~1700
Head		D1-4	D1-4	D1-4
Metric thread		26kinds (0.4~7mm)	26kinds (0.4~7mm)	26kinds (0.4~7 mm)
Inch thread		34kinds(4~56T.P.I)	34kinds(4~56T.P.I)	34kinds(4~56T.P.I)
Moulder thread		16 kinds(0.35~5M.P)	16 kinds(0.35~5M.P)
Diametral thread		36 kinds(6~104D.P)	36 kinds(6~104D.P)
Longitudinal feeds	mm/r	0.052~1.392 (0.002”~0.0548”)	0.052~1.392 (0.002”~0.0548”)	0.052~1.392 (0.002”~0.0548”)
Cross feeds	mm/r	0.014~0.38 (0.00055”~0.015”)	0.014~0.38 (0.00055”~0.015”)	0.014~0.38 (0.0007”~0.0187”)
Diameter lead screw	mm	φ22(7/8”)	φ22(7/8”)	φ22(7/8”)
Pitch of lead screw		3mm or 8T.P.I	3mm or 8T.P.I	3mm or 8T.P.I
Saddle travel	mm	1000	1000	810
Cross travel	mm	170	170	150
Compound travel	mm	74	74	90
Compound travel	mm	95	95	100
Barrel diameter	mm	φ32	φ32	φ32
Taper of center	mm	M.T.3	M.T.3	M.T.3
Motor power	Kw	1.5(2HP)	1.5(2HP)	1.5(2HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)	0.04(0.055HP)	0.04(0.055HP)
Machine(L×W×H)	mm	1920×760×760	1920×760×760	1780×750×760
Stand(left) (L×W×H)	mm	440×410×700	440×410×700	400×370×700
Stand(right) (L×W×H)	mm	370×410×700	370×410×700	300×370×700
Machine	Kg	500/560	505/565	390/440
Stand	Kg	70/75	70/75	60/65

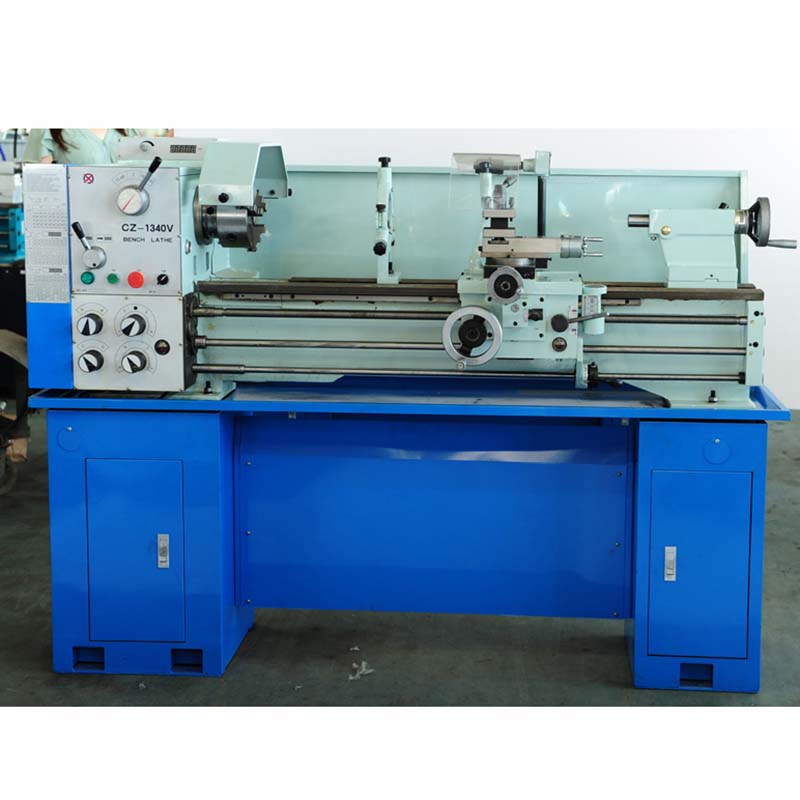

Product detail pictures:
