2017 Latest Design Horizontal Shaper Machine - Universal Milling Drilling Machine ZX6350A – Hoton
2017 Latest Design Horizontal Shaper Machine - Universal Milling Drilling Machine ZX6350A – Hoton Detail:
DRILLING MILLING MACHINE FEATURES:
Horizontal and vertical Drilling and Milling Machine X,Y-axis auto-feeding,
Z--axis lifting motor.
spindle auto-feeding.
SPECIFICATIONS:
|
MODEL |
ZX6350A |
ZX6350ZA |
|
Table size(mm) |
1250x320 |
1250x320 |
|
Table travel(mm) |
600×270 |
600×300 |
|
Table feeds range(x/y)(mm/min) |
22-555(8 steps)(max.810) |
22-555(8 steps)(max.810) |
|
Max drilling dia(mm) |
50 |
50 |
|
Max. end milling width(mm) |
100 |
100 |
|
Max vertical milling dia(mm) |
25 |
25 |
|
Max tapping dia(mm) |
M16 |
M16 |
|
Distance from horizontal spindle to table(mm) |
0-300 |
0~300 |
|
Distance from vertical spindle to column(mm) |
200-550 |
200~500 |
|
Distance from vertical spindle to table(mm) |
100-400 |
100-400 |
|
Distance from horizontal spindle to arm(mm) |
175 |
175 |
|
Spindle taper |
ISO40, MT4,ISO30 |
ISO40, |
|
Spindle travel(mm) |
120 |
120 |
|
Spindle speed range (r.min) |
115-1750(V),40-1310(H) |
60~1500/8(V), 40~1300/12(H) |
|
T of table (NO./WIDTH/DISTANCE)(mm) |
3/14/70 |
3/14/70 |
|
Sleeve feed(mm/min) |
0.08/0.15/0.25 |
|
|
Up/down speed of table |
560 |
560 |
|
Speed of coolant pumps |
12 |
12 |
|
Coolant pump motor(w) |
40 |
40 |
|
Up/down motor of headstock(w) |
750 |
750 |
|
Main motor(kw) |
0.85/1.5(V) 2.2(H) |
2.2(V) 2.2(H) |
|
Overall dimension(L×W×H)(mm) |
1655×1450×2150 |
1700×1480×2150 |
|
N.W./G.W(kg) |
1400/1550 |
1300/1450 |

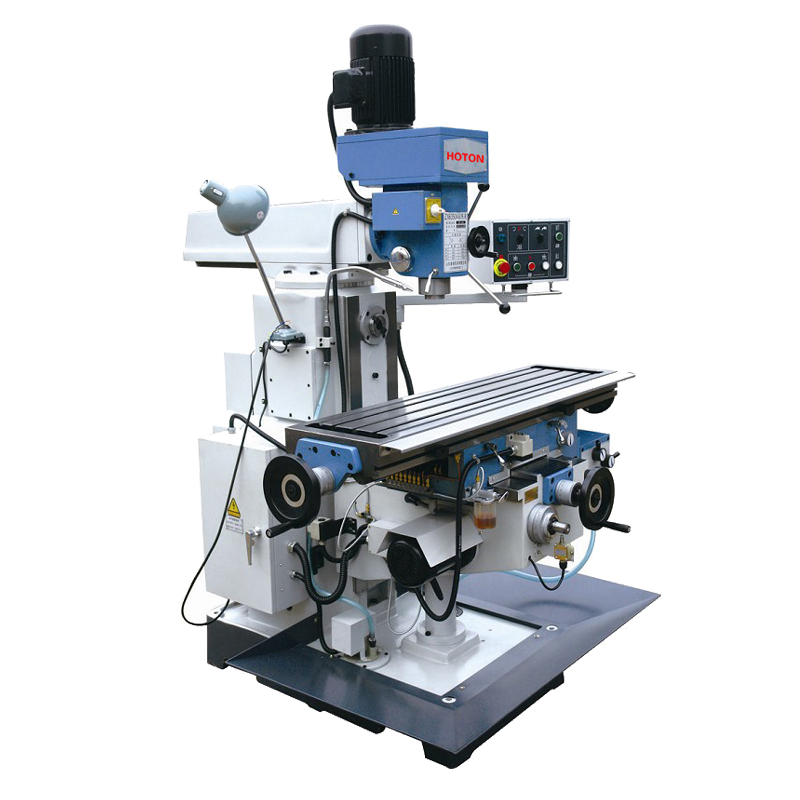

Product detail pictures:
