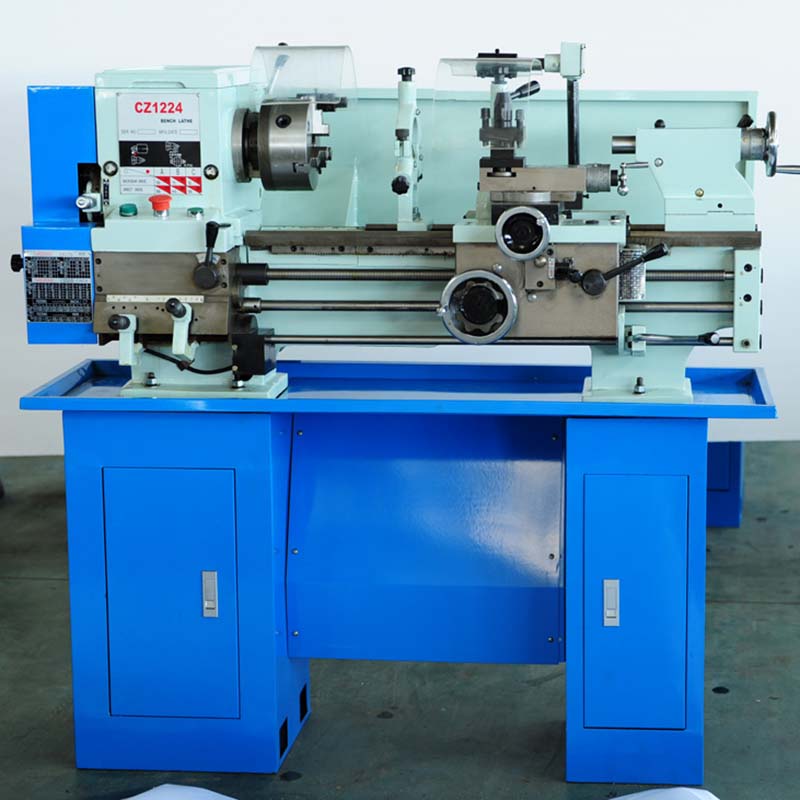

Best Price on Ironworker - Bench Lathe CZ1224 CZ1237 – Hoton Detail:

BENCH LATHE FEATURES:
Engineered from high grade castings
“V” way Bedways induction hardened and ground
Gad bed
Cross and longitudinal interlocking feed,with enough safety
Inching switch for test running
Metric/imperial threading available
Belt-driven headstock ,low noise and easy operation
SPECIFICATIONS:

ITEM		CZ1224	CZ1237
Swing Over Bed	mm	φ305	φ305
Swing Over Carriage	mm	φ173	φ173
Swing Over Gap	mm	φ440	φ440
Width of bed-way	mm	182	182
Distance Between Centers	mm	530	940
Spindle taper		M.T.5	M.T.5
Spindle bore	mm	φ36	φ36
Step of speed		12	12
Range of speed	rpm	50~1200	50~1200
Metric Thread		15kinds (0.25~7.5mm)	15kinds (0.25~7.5mm)
Inch Thread		40kinds(4~112T.P.I)	40kinds(4~112T.P.I)
Range of feed amount	mm/r	0.12~0.42 (0.0047~0.0165)	0.12~0.42 (0.0047~0.0165)
Diameter of lead screw	mm	φ22(7/8)	φ22(7/8)
Pitch of lead screw		3mm or 8T.P.I	3mm or 8T.P.I
Saddle Travel	mm	510	850
Cross Travel	mm	150	150
Compound Travel	mm	90	90
Barrel Travel	mm	100	100
Barrel Diameter	mm	φ32	φ32
Taper Of Center	mm	M.T.3	M.T.3
Motor Power	Kw	1.1(1.5HP)	1.1(1.5HP)
Motor For Coolant System Power	Kw	0.04(0.055HP)	0.04(0.055HP)
Machine (L×W×H)	mm	1420×750×760	1780×750×760
Stand (L×W×H)	mm	400×370×700	400×370×700
Stand (L×W×H)	mm	300×370×700	300×370×700
Machine	Kg	365/415	385/435
Stand	Kg	60/65	60/65

Product detail pictures:
