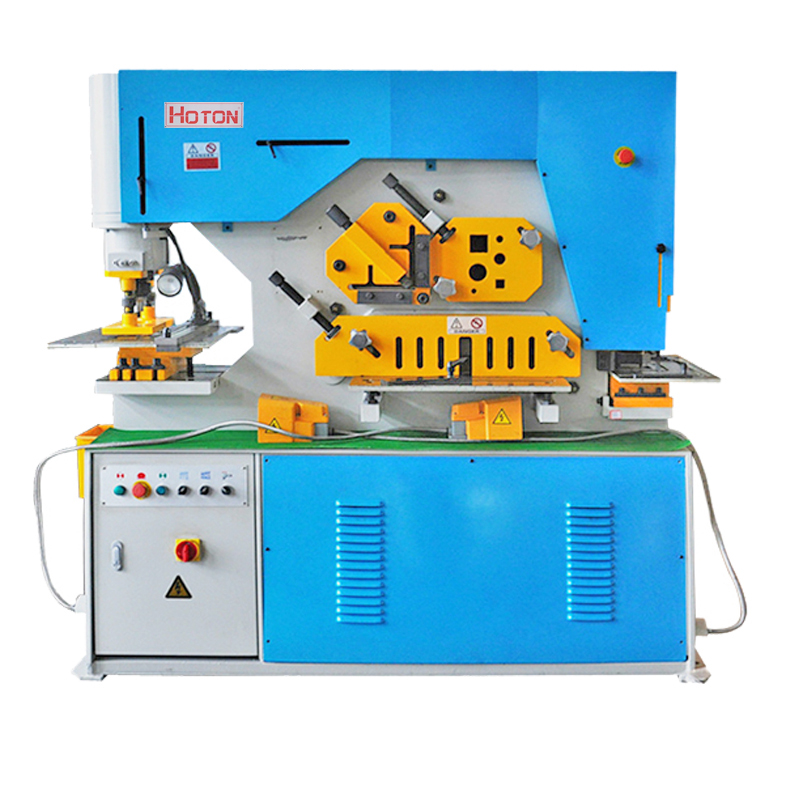

China wholesale Ck6150 Cnc Lathe - Punch Shear Q35Y-20 – Hoton Detail:

FEATURES:

Double cylinders hydraulic punch & shear machine
Five independent stations for punch, shear, notching, section cut
Large punch table with multi-purpose bolster
Removable table block for overhang channel / joist flange punching applications
Universal die bolster, easy change punch holder fitted, punch adapters supplied
Angle, round & square solid monoblock crop station
Rear notching station, Low power inching and adjustable stroke at punch station
Centralized pressure lubrication system
Electric panel with overload protection elements and integrated controls
Safety movable foot pedal

Technical Parameters:

Model	Q35Y-20
Punching Pressure (T)	90
Max. cutting thickness of sheet plates (mm)	20
Material strength (N/mm²)	≤450
Angle of Shear (°)	8°
Flat bar shearing (T*W)(mm)	20330 10480
Max. length of cylinder stroke (mm)	80
Trips frequency (times/min)	12-20
Depth of throat (mm)	355
Max. punching diameter (mm)	30
Motor power (KW)	7.5
Overall dimensions (LWH)(mm)	19509001950
Weight(kg)	2400

Types of profiled steel for shearing (If you want Joist or Channel, need special order)

Steel category	Round Bar	Square Bar	Equal Angle		T Bar		I-iron	Channel steel
			90° Shearing	45° Shearing	90° Shearing	45° Shearing
Section view
Q35Y-20	50	50*50	14014012	707010	1407012	707010	2001029	160606.5
