China wholesale Ck6150 Cnc Lathe - Valve Seat Boring Machine – TQZ8560 TQZ8560A TQZ8560B TQZ85100 – Hoton Detail:
1:FEATURES OF PRODUCTS
TQZT8560 is suitable for repairing the valve seat of automobiles, motorcycle, tractor and
Other engines. It also can be used to drilling and boring etc. The machine features are
air-floating, vacuum clamping, high positing precision, easy operation.
The machine is set with grinder for cutter and vacuum check device for work piece.
We have the ability to design and produce special pilot and cutter according to
customers' request.
| Model | TQZ8560 | TQZ8560A | TQZ8560B | TQZ85100 |
| Boring dia. | Φ56mm | Φ14-Φ60mm | Φ14-Φ60mm | Φ20-Φ100mm |
| Max.size of cylinder head for cutting | 1200×500×300mm | 1200×500×300mm | 1200×500×300mm | 1500×550×350mm |
| Power of spindle motor | 0.55kw | 1.2kw | 1.2kw | 1.2kw |
| Spindle speed(infinitely variable speed) | 0-500rpm | 0-1000rpm | 0-1000rpm | 0-1000rpm |
| Spindle swing angle | 5° | 5° | 5° | 5° |
| Spindle stroke | 200mm | 200mm | 200mm | 200mm |
| Spindle move(cross×longitudinal) | 950×35mm | 950×35mm | 950×35mm | 1200×35mm |
| Distance of worktable longitudinal move | ---- | 150mm | 150mm | |
| Fixture rotary angle | +-15° | +45°~+-15° | +45°~+-15° | +45°~+-15° |
| Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Air supply pressure | 0.6Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Air supply flow
Mandrel sleeve to table
|
300L/min473mm | 300L/min473mm | 300L/min473mm | 300L/min473mm |
| Machine weight(N/G) | 1050/1250kg | 1100/1300kg | 1150/1350kg | 1400/1800kg |
| Over dimensions(L×W×H)mm | 1480×1050×1970 | 1910×1050×1970 | 1910×1050×1970 | 2110×1100×2070 |
| Packing size(L×W×H)mmweight | 1940×1350×22201050/1250 | 2230×1350×2270 | 2230×1350×2270 | 2430×1400×2300 |

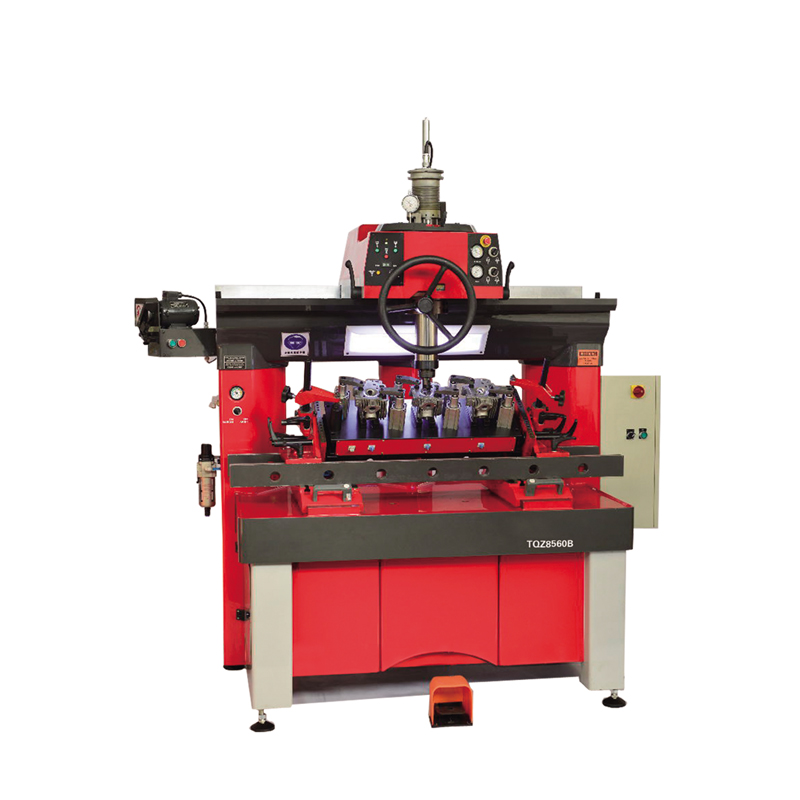

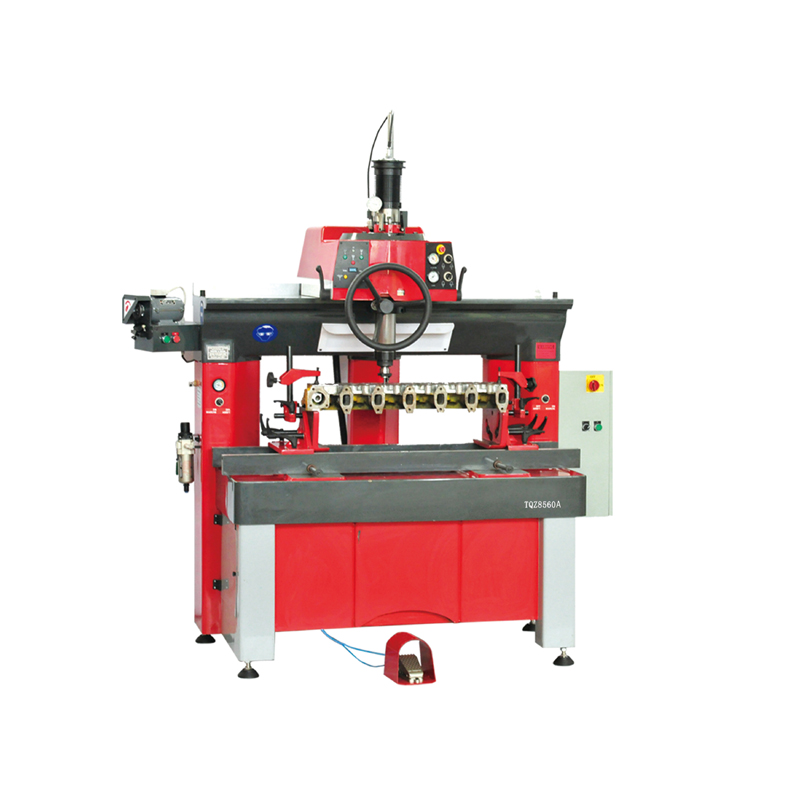

Product detail pictures:
