Chinese Professional Grinder Machine - Bench Lathe BVB25/3 BVB25L/3 – Hoton Detail:

Feature:
1.most economic ,widely useful combination machine .
2.V-way bed is precision ground
3.Spindle is supported by precision tapered bearing
4.Lathe headstock is constantly oiled during operating
5.Belt drive mill head get quiet operation

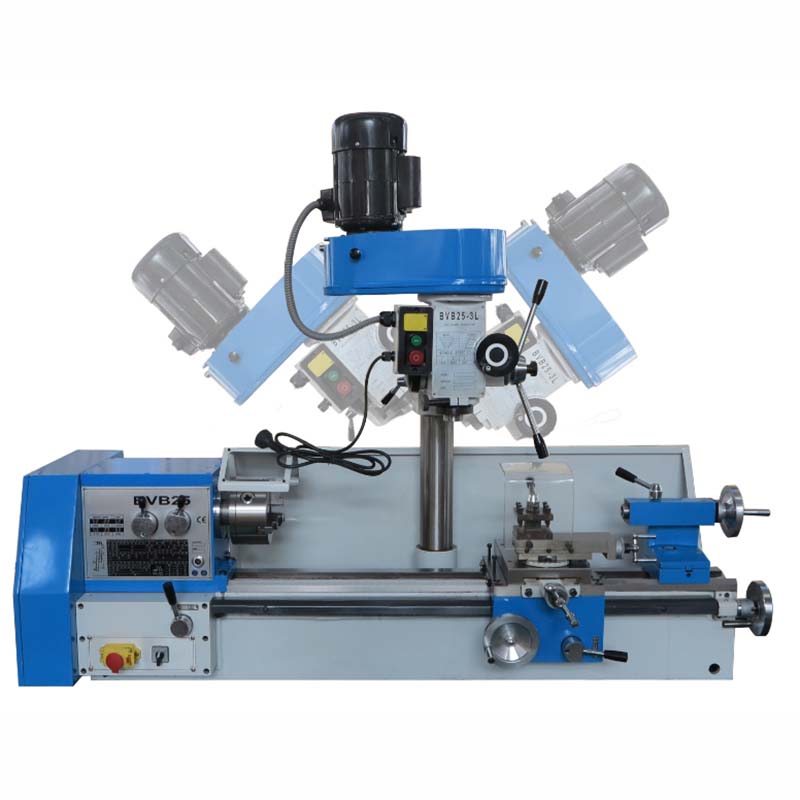

6.Mill head can be titled +-90 degree
7.Power longitudinal feed follow threading
8.Adjustable gibs for slideways
9.Equipped with leadscrew cover and work table
10.Change gear has large feed and threading function
11.Tailstocks can be off set for turning tapers

Model	BVB25-3/BVB25L-3
Distance between center	450/700mm
Swing over bed	250mm
Taper of spindle bore	MT4
Spindle bore	27mm
Range of spindle speed	115-1620rpm
Range of inch threads	8-56TPI
Range of metric threads	0.2-3.5mm
Travel of cross slide	140mm
Taper of tailstock quill	MT3
Motor	750W
Mill&drill
Taper of spindle bore	MT2
Spindle stroke	80mm
Step of spindle speeds	4
Range of spindle speed	400-1600rpm
Head stroke	240mm
Head tilt	+-90 degree
Motor	550W
Package size	1510670920mm
Net /gross weight	245kg/270kgs
