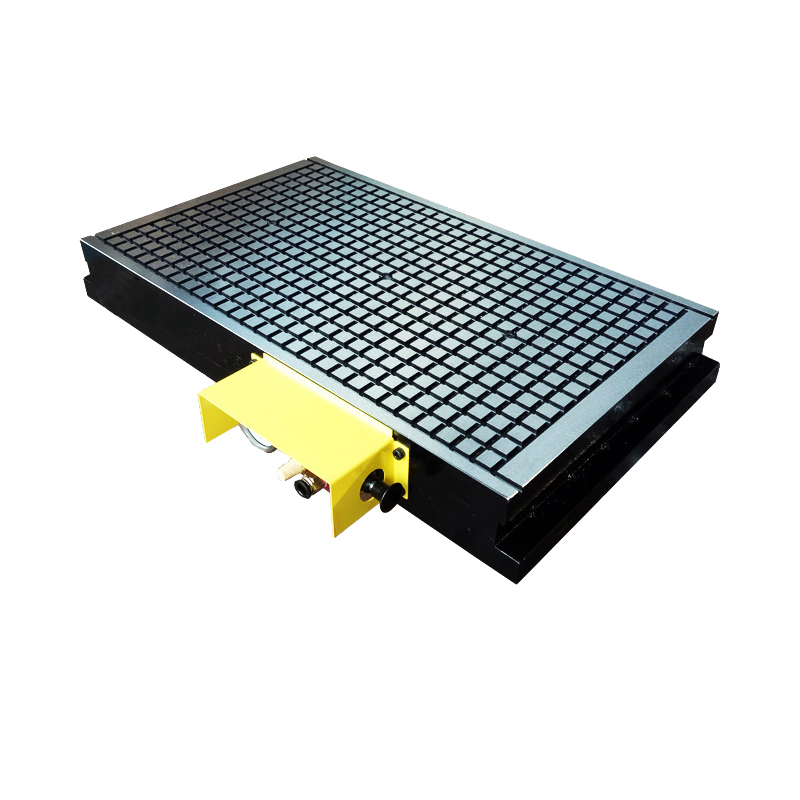

Discount wholesale Hydraulic Bending Brakes - Magnetic Chuck HT series – Hoton Detail:

WITHOUT PUMP:

A. this product adopts vacuum ejector, only through compressor can work.

B. even machine had inhaled cooling oil. cooling water or rubbish etc. Vacuum Chuck also can exclude them.

2. FOR AVAILABLE ALL PROCESS PRODUCTS:

A. work well for up layer process, grinding.

B. assist metal using, special shape produets process also easy to drill work.

3. AT WILL TO ADJUST SIZE:

A. according to size of process products to change assemble and adjust machine.

B. according to process products size to place station.

4. PLACE OF KEY THROUGHAND WORKS TOPPER:

A.vacuum chuck of bottom install key through, so can get exact parallel angle and vertical angle.
B.vacuum chuck of side install two works stoppers, prevent from momentum.

5.FOLLOWING ARE SUITABLE FOR CLAMPING PROCESS:

A. light metal, hard metal, iron board etc.

B. plastic products, ceramics, glass, alminum steelless, wood stone materials etc. All un-magnetic products and un-ventilation smooth products.

C. products of small shape, smooth and complicated process.

D. products of outside need full process will cause scar crooked, curved.

F.products of supper thin can’t clamp.

Model no.	Outline dimensions(mm)			Air consume (L/min)	Max suck (L/min)	N.W.(KG)
Model no.	Lenghth(A)	Width(B)	Height(C)	Air consume (L/min)	Max suck (L/min)	N.W.(KG)
HT1515	150	150	50	23	12	9.2
HT1530	150	300	50	23	12	13.7
HT2020	200	200	50	46	24	12.1
HT2040	200	400	100	46	24	22.2
HT2525	250	250	100	78	40	16.4
HT2550	250	500	100	78	40	30.6
HT3030	300	300	100	23	12	23.4
HT3045	300	450	100	46	24	37.0
HT3060	300	600	100	46	24	48.6
HT4080	400	800	100	92	48	72.9
HT40100	400	1000	100	92	48	103
HT5050	500	500	100	78	40	59
HT5075	500	750	100	15	80	87
HT50100	500	1000	100	15	80	116
HT50125	500	1250	100	15	80	145
HT6060	600	600	100	78	40	87.8
HT6090	600	900	100	15	80	116.4

Product detail pictures:
