F12 SERIES SEMI-UNIVERSAL DIVIDING HEAD

SPECIFICATIONS:

1. Type F12 series,the semi-universal dividing head is one of the most important attachment for milling machine.With the help of this dividing head ,the workpiece held can be carried out direct indexing and simple indexing,or rotate to any angle as desired and the periphery of a workpiece can be divided into any divisionsof equal parts and etc.

2. The F12 series with right handwheel.

SPECIFICATION		F12100	F12125	F12160	F12200
Center Height mm		100	125	160	200
Swivel angle of spindle from it's horizontal position(upward)		≤95°
Horizontal position(downward)		≤5°
Rotating angle of spindle for one complete revolution of dividing handle		9°(540 grad.,1'each)
Min.reading of vernier		10”
Worm gear ratio		1:40
Taper of spindle bore		MT3	MT4
Width of locating key.mm		14	18
Diameter of short taper of spindlenose for mounting flange mm		Φ41.275	Φ53.975	Φ53.975	Φ53.975
Hole numbers on index plate	1st plate	24,25,28,30,34,37,38,39,41,42,43
	2nd plate	46,47,49,51,53,54,57,58,59,62,66
Individual indexing error of the spindle for one complete revolution of dividing handle		±45"
Cumulate error at any 1/4 periphery of spindle		±1"
Max.bearing Kg		100	130	130	130
Net weight Kg		57	83.5	100	130
Gross weight Kg		69	96	114	140
Case Dimensions mm		610×459×255	536×460×310	710×505×342	710×535×342

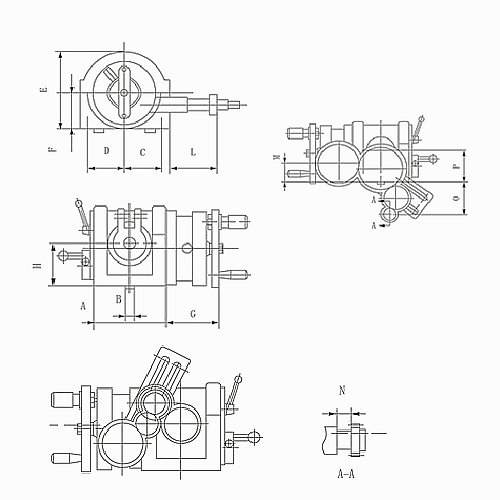

DIMENSIONAL SKETCH

INSTALLATION SKETCH AND DIMENSIONS:

Model	A	B	C	D	E	F	G	H	L	M	N	O	P
F12100	162	14	102	87	186	95	116	100	93	54.7	30	100	100
F12125	209	18	116	98	224	117	120	125	103	68.5	34.5	100	125
F12160	209	18	116	98	259	152	120	160	103	68.5	34.5	100	160
F12200	209	18	116	98	299	192	120	200	103	68.5	34.5	100	200

ACCESSORIES:

1.Tailstock 2.Dividing plate 3.Flange 4.3-jaw chuck 5.Round Table(optional)
