Factory Promotional Profile Bending Machine - Slip Roller W11 Series – Hoton Detail:

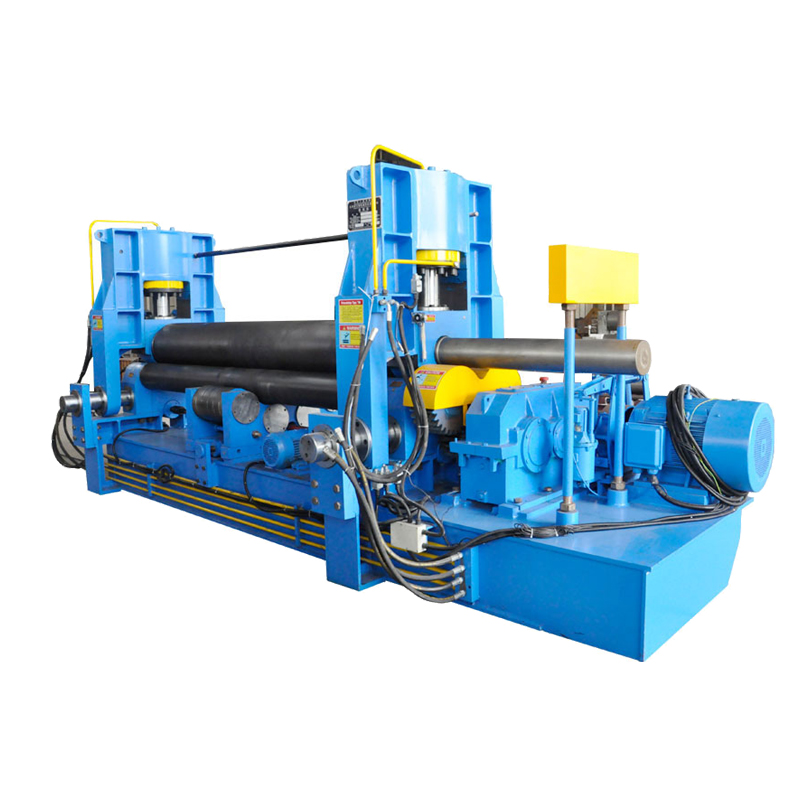

MECHANICAL TYPE THREE ROLLER ROLLING AND BENDING MACHINE FROM HOTON MACHINERY

This machine structure pattern three roller symmetrical type, the roller in two central symmetrical
Position under the roller moves vertically through the screw worm and silk mother, The two lower
Rollers rotates through the gear reducer output and lower rollers Gear mesh, to provide torque for
The roll sheet. The machine disadvantage is that end plate bending requires the use of other devices.

PARAMETER OF GOODS

Model	Max. thickness	Max. width	Bending speed	Workpiece Min. Dia.	Top roller Dia	Bottom roller Dia.	Dis. bottom rollers	Main motor	Net weight (About)
*W11-43000**	4mm	3000mm	5m/min	450mm	140mm	160mm	220mm	5.5kw	3200kgs
*W11-62000**	6mm	2000mm	5m/min	430mm	170mm	170mm	220mm	5.5kw	2890kgs
*W11-62500**	6mm	2500mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	3200kgs
*W11-63000**	6mm	3000mm	4m/min	600mm	240mm	190mm	280mm	7.5kw	4500kgs
*W11-82000**	8mm	2000mm	5m/min	480mm	190mm	170mm	220mm	5.5kw	3300kgs
*W11-82500**	8mm	2500mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
*W11-83000**	8mm	3000mm	4m/min	600mm	240mm	180mm	280mm	11kw	5200kgs
*W11-102000**	10mm	2000mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	4100kgs
*W11-103000**	10mm	3000mm	4m/min	650mm	260mm	220mm	340mm	11kw	5800kgs
*W11-122000**	12mm	2000mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4800kgs
*W11-122500**	12mm	2500mm	4m/min	650mm	260mm	220mm	320mm	11kw	5800kgs
*W11-123000**	12mm	3000mm	4m/min	700mm	280mm	240mm	360mm	15kw	8000kgs
*W11-161500**	16mm	1500mm	5m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
*W11-162000**	16mm	2000mm	4m/min	650mm	260mm	220mm	320mm	11kw	5050kgs
*W11-162500**	16mm	2500mm	4m/min	700mm	280mm	240mm	360mm	15kw	6500kgs
*W11-163200**	16mm	3200mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
*W11-202000**	20mm	2000mm	4m/min	700mm	280mm	240mm	360mm	11kw	6450kgs
*W11-202500**	20mm	2500mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
*W11-203000**	20mm	3000mm	4m/min	930mm	370mm	280mm	440mm	22kw	11500kgs
*W11-252000**	25mm	2000mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8400kgs
*W11-252500**	25mm	2500mm	4m/min	930mm	370mm	280mm	480mm	22kw	12500kgs
*W11-302000**	30mm	2000mm	4m/min	930mm	370mm	280mm	480mm	22kw	12000kgs

Product detail pictures:
