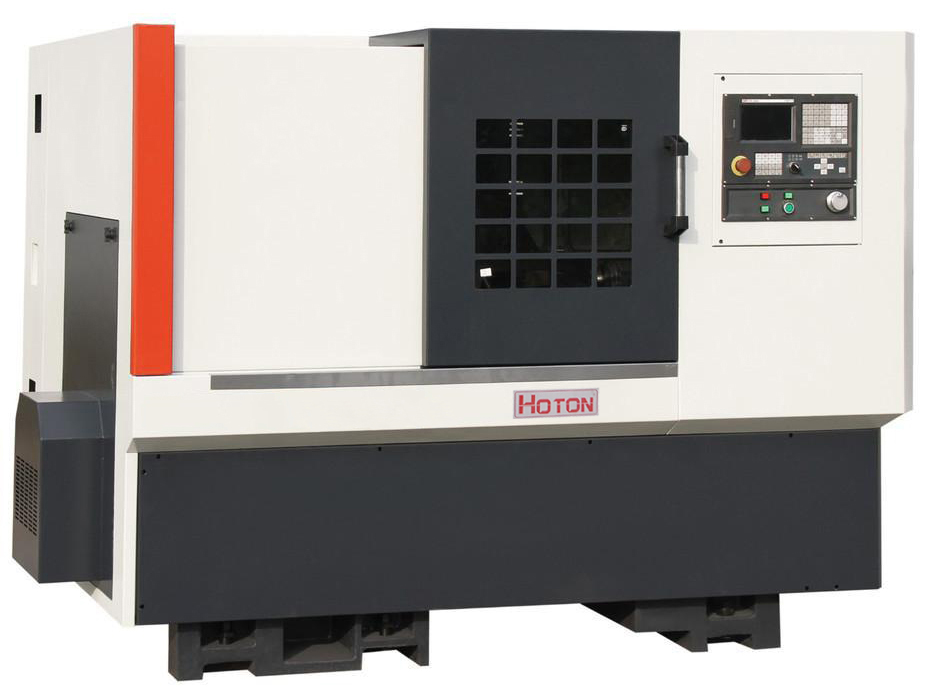

CNC Lathe TCK6326 & Universal Lathe GH2060

Factory wholesale Cnc Lathe Tck6326 - Universal Lathe GH2060 – Hoton

Short Description:

PRECISION LATHE Super audio quenched and accurate grinded bedway ang dovetail of saddle. 2. Spindle system has great rigidity, high accuracy, strong cutting force and the 80mm spindle bore. 3. One-piece cast iron base with damping capacity, suiting to heavily cut. 4. Main drive gears are super audio quenching and accurately grinding, with low working noise. 5. Gap bed can be demounted, it is convenient to manufacture large diameter workpieces. 6. It is convenient to cut thread without ch...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

The incredibly abundant projects administration experiences and 1 to one provider model make the superior importance of small business communication and our easy understanding of your expectations for Cnc Lathe Cak6140 , Vertical Cylinder Boring Machine T8018c , Horizontal Cnc Lathe , Customer pleasure is our main purpose. We welcome you to definitely build business relation with us. For further more information, you should never wait to contact with us.

Factory wholesale Cnc Lathe Tck6326 - Universal Lathe GH2060 – Hoton Detail:

PRECISION LATHE
Super audio quenched and accurate grinded bedway ang dovetail of saddle.
2. Spindle system has great rigidity, high accuracy, strong cutting force and the 80mm spindle bore.
3. One-piece cast iron base with damping capacity, suiting to heavily cut.
4. Main drive gears are super audio quenching and accurately grinding, with low working noise.
5. Gap bed can be demounted, it is convenient to manufacture large diameter workpieces.
6. It is convenient to cut thread without changing wheels, and apron has fast driving and reversing mechanism.
7. The protection of overall length lead screw and chuck protecting hood are designed to comply with CE.
8. Raster count, digital readout and high degree of accuracy.
SPECIFICATIONS:

MODEL		GH1840	GH1860	GH2060
Max.Swing.over bed	mm	450mm		500mm
Max.Swing.over cross slide	mm	285		300mm
Max.Swing.over gap	mm	696		746mm
Max.Distance between centers	mm	1000	1500
Bed width	mm	340
Taper of spindle bore		MT#6
Diameter of spindle bore	mm	80
Steps of spindle speeds		12steps
Range of spindle speeds	r/min	40-1600rpm
Spindle nose		D-8
Metric thread range	mm	0.1-144(41kinds)
Inch screw thread range	TPI	2-112(60kinds)
Range of longitudinal feeds	mm	0.0325-1.76(0.0012-0.0672in/rev)
Range of cross feeds	mm	0.014-0.736(0.0005-0.0288in/rev)
Diameter of leadscrew	mm	36
Pitch of leadscrew	mm	6(4T.P.I)
Travel of tailstockquill	mm	220
Diameter of tailstock quill	mm	70
Taper of tailstock quill		MT#4
Main motor power	KW	5.5(7.5HP)
Packing size of lathe(LxWxH)	mm	2420x1140x1700	2920x1140x1700
Net Weight	Kg	2200	2400	2400
Gross Weight	Kg	2400	2600	2600
