Factory wholesale Metal Craft Equipment - Permanent Magnetic Chuck X41 series – Hoton Detail:

The main usage and characteristic of the electromagnetic chuck:

1.Applies to surface grinder, EDM machine and linear cutting machine.
2.Pole space is fine, Magnetic force is distributed uniformly. It performs well on thin and tiny workpiece machining. The working table precision doesn’t change during magnetizing or demagnetizing.
3.The panel through special processing,with no leakage, prevents corrosion by cutting fluid, extends working life and enables to work longer time in cutting fluid.
4. Fine grinding on six faces. Can be used vertically in linear cutting machine.
5. The chuck with high performance magnetic steel, powerful magnetic force and almost no residual magnetism.

Powerful Permanent Magnetic Chuck

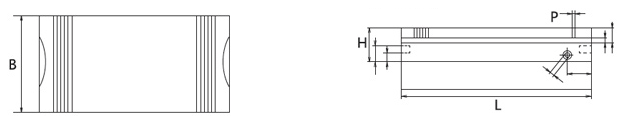

Model	Dimension			Magnetic	Spacing	Weight(KG)
	(MM)			Force	(IRON+COPPER)	Weight(KG)
	L	B	H	120N/CM²	1.5+0.5 OR 1+3
X41 1510	150	100	48			4.5
X41 2010	200	100	48			7.5
X41 1515	150	150	48			8.5
X41 2015	200	150	48			11.3
X41 3015	300	150	48			16.5
X41 3515	350	150	48			19.8
X41 4015	400	150	48			22.6
X41 4515	450	150	50			25.5
X41 4020	400	200	50			31.5
X41 4520	450	200	50			35.5
X41 5025	500	250	50			45
X41 6030	600	300	48			72
X41 7030	700	300	48			85

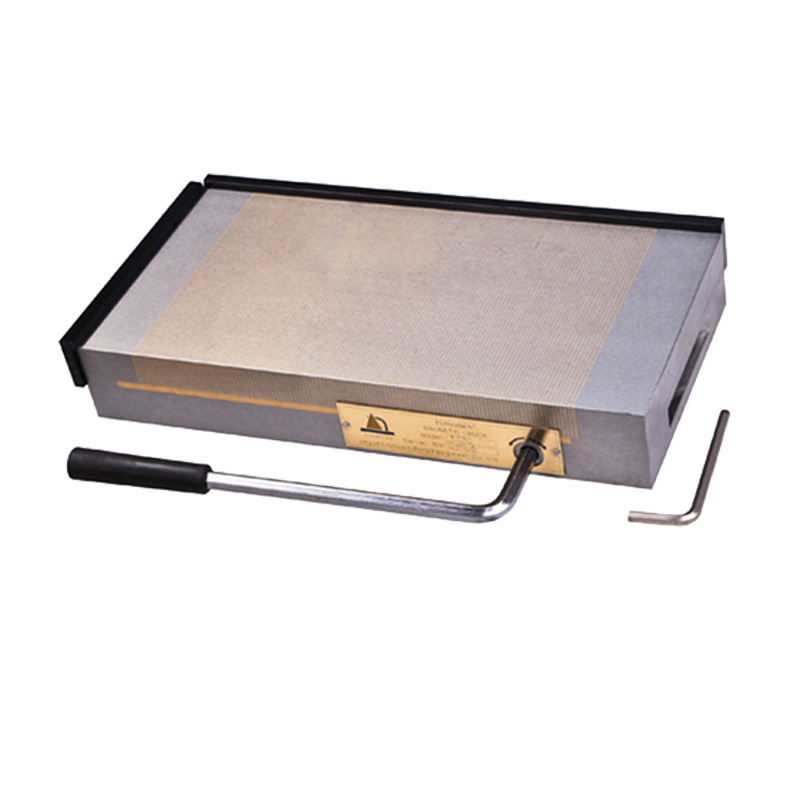

Product detail pictures:
