Good quality Bench Lathe Jyp290vf - Dividing Head-BS-0 BS-1 – Hoton Detail:

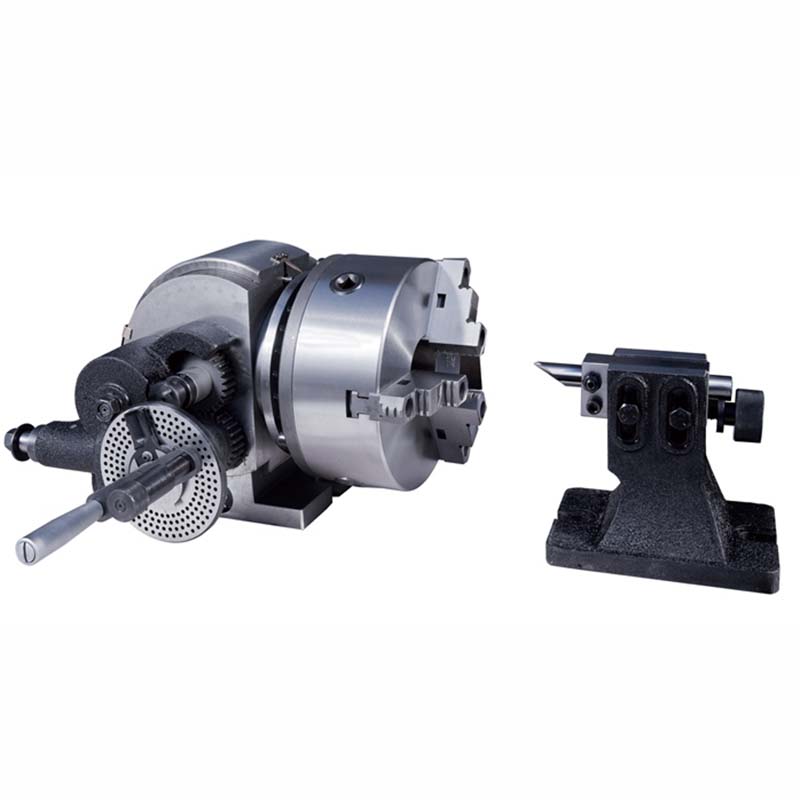

BS-0 BS-1
Semi-Universal dividing head is a simple index center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, but the whole construction is the same as universal type. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. Attaches 3 dividing plate along with the dividing head indirect dividing in any division indexing 2-50, 51-380.

STANDARD ACCESSORIES:
DIVIDING PLATE A, B, C.
Numbers of holes of dividing plate (worm gear reduction ratio 1: 40)

Number of holes	A-Plate	15,16,17,18,19,20
	B-Plate	21,23,27,29,31,33
	C-Plate	37,39,41,43,47,49

HEADSTOCK Unit: mm/inches

Model No.	A	B	H	h	a	b	g	Taper of center	Diameter of spindle hole
BS-0	193	131	173	100	166	90	16	MT2	18
BS-0	7.59	5.15	6.81	3.93	6.53	3.54	0.63	MT2	0.71
BS-1	242	168	220	128	206	113	16	MT3	20
BS-1	9.52	6.61	8.66	5.04	8.11	4.45	0.63	MT3	0.79

TAILSTOCK Unit: mm/inches

Model No.	A1	B1	H1	h	a1	b1	g1
BS-0	175	87	102	100	130	92	16
BS-0	6.89	3.42	4.02	3.93	5.12	3.62	0.63
BS-1	183	87	137	128	158	110	16
BS-1	7.20	3.42	5.39	5.04	6.22	4.33	0.63

OPTIONAL ACCESSORIES:
3-jaw chuck
4” or 5” 3-jaw chuck for BS-0
5” or 6” 3-jaw chuck for BS-1

Features
100% brand new, of good quality
Direct/indirect dividing
Semi-universal dividing head
User-friendly machine
Professional precise division

Technical
Condition: Brand New
Swing: 6-1/2"
Center Height: 3-15/16"
Headstock Taper: 7 B&S
Weight: 23kg (50.7lbs)
Package Dimensions: 410*235*205mm (16*9*8inch)

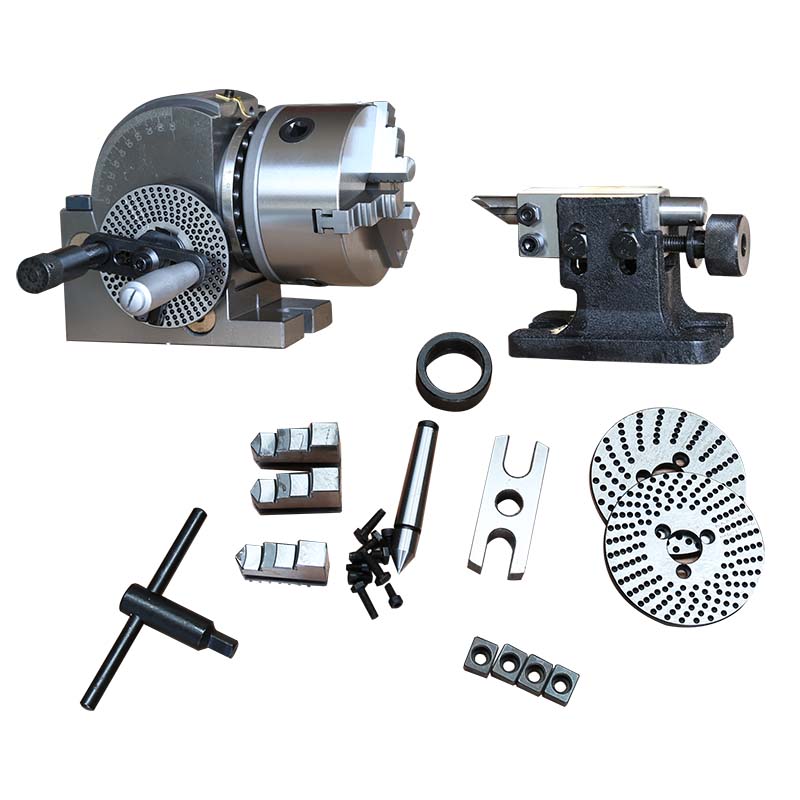

Package
1 X Dividing Head Set
3 X Dividing Plates
1 X 125mm 3 Jaw Chuck

Product detail pictures:
