High Quality Small Gear Hobbing Machine Y3150 - Fine Pitch Electro Magnetic Chuck X11M Series – Hoton Detail:

The Description of goods

The main usage and characteristic of the electromagnetic chuck:

Fine pitch electro magnetic chuck is a type of magnetic workholding device. Can be used for surface grinder machine, tool grinding machine and electromachine etc.

Able to suck magnetic conductivity materials, the suction force is well-distributed and with high processing accuracy. It’s suitable for processing small workpieces.
Quality Standards:ISO9001-2000 quality management system

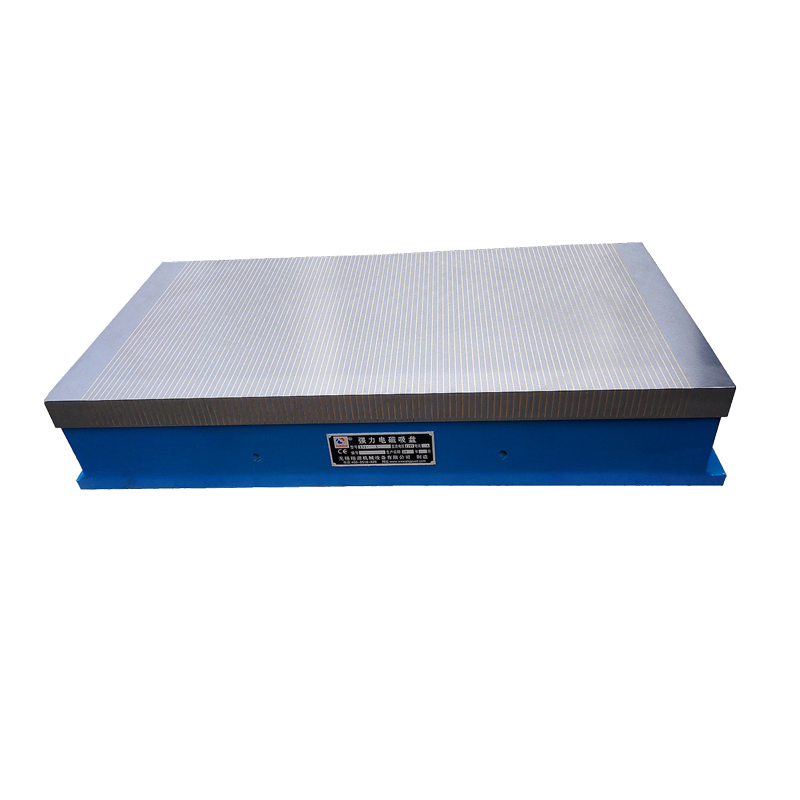

Fine pitch electro magnetic chuck
electromagnetic chuck

SPECIFICATIONS:

ITEM CODE	LENGTH	WIDTH	CHUCK HEIGHT	PANEL HEIGHT	POLE PITCH	CURRENT	POWER	NET WEIGHT
X11M 200×400	400	200	110	26	4(3+1)	1	110	65
X11M 200×460	460	200	110	26	4(3+1)	1.2	132	70
X11M 200×500	500	200	110	26	4(3+1)	1.3	143	80
X11M 200×560	560	200	110	26	4(3+1)	1.5	165	95
X11M 200×610	610	200	100	26	4(3+1)	1.5	165	90
X11M 200×630	630	200	120	26	4(3+1)	2	220	110
X11M 250×500	500	250	110	26	4(3+1)	1.6	176	100
X11M 250×600	600	250	120	26	4(3+1)	1.8	198	120
X11M 300×500	500	300	120	26	4(3+1)	1.8	198	120
X11M 300×600	600	300	110	26	4(3+1)	2	220	135
X11M 300×610	610	300	100	26	4(3+1)	2	220	115
X11M 300×680	680	300	120	26	4(3+1)	3	330	150
X11M 300×800	800	300	120	26	4(3+1)	3.5	385	175
X11M 300×1000	1000	300	120	26	4(3+1)	4	440	210
X11M 400×610	610	400	100	26	4(3+1)	2.5	275	150
X11M 400×690	690	400	100	26	4(3+1)	2.8	308	170
X11M 320×1000	1000	320	120	26	4(3+1)	4	440	220
X11M 320×1250	1250	320	120	26	4(3+1)	4.8	528	270
X11M 300×800	800	300	120	26	4(3+1)	3	330	175
X11M 300×1000	1000	300	120	26	4(3+1)	3.2	352	210
