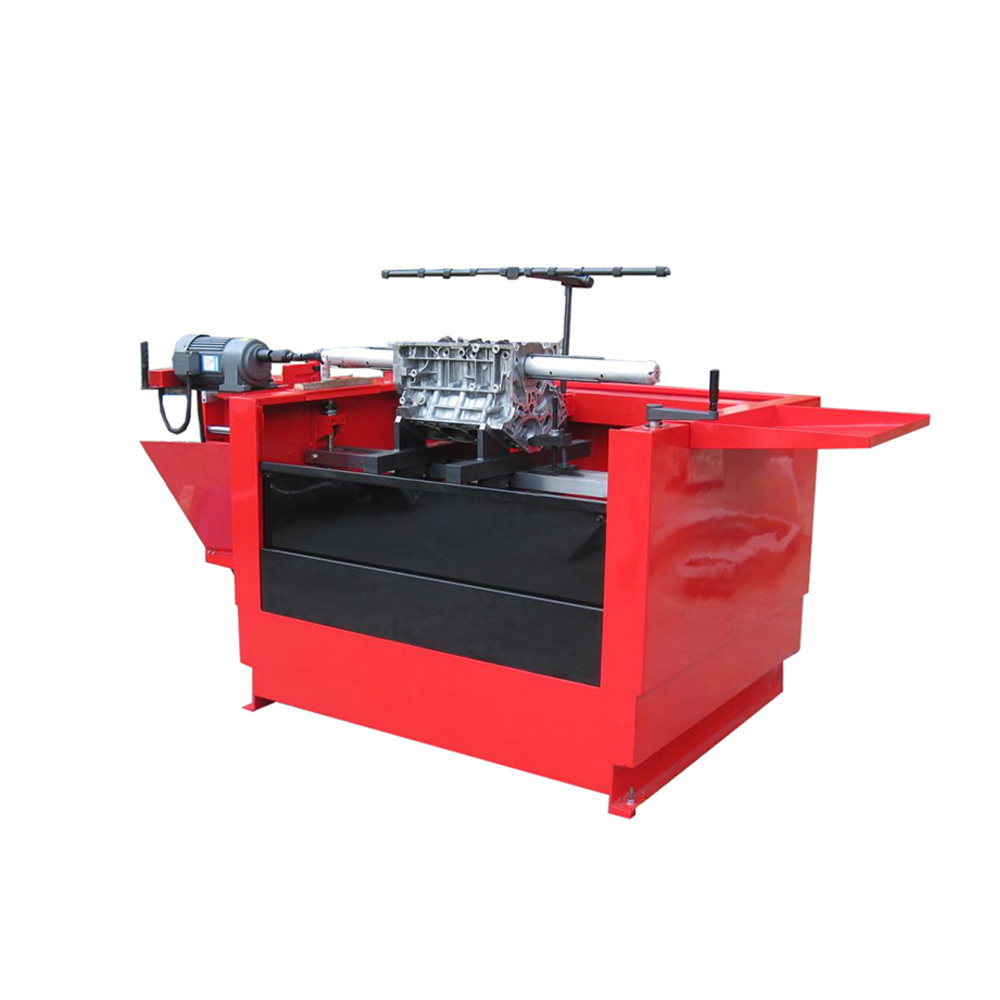

Horizontal Linear Boring & Honing Machine LBH-100
|
NO |
ITEMS | LBH100 |
|
1 |
Working range | Ф46~Ф178 mm |
|
2 |
Spindle speed | 1245 * 232 * 228 mm |
|
3 |
Power of spindle motor | 1.5 KW |
|
4 |
Power of cooling oil pump | 0.12 KW |
|
5 |
Working cavity (L * W * H) | 1140*710*710 mm |
|
6 |
Physical dimensions of the machine (L * W * H) | 3200*1480*1920 mm |
|
7 |
Max. stroke length of the spindle | 660 mm |
|
8 |
Min. amount of coolant | 130 L |
|
9 |
Max. amount of coolant | 210 L |
|
10 |
Machine weight(without load) | 670 kg |
|
11 |
Gross weight of the machine | 800 kg |
