Essential Guide to Lathes: Tips, Types, and Techniques Explained

CM61L/A Type Integral Structure Floor Lathe CM6...

Short Description:

The CM61A floor-standing lathe is an integral structure and is suitable for machining flanges, valves, discs and plates of various specifications. It can perform rough and fine turning of outer circles, inner holes, end faces, conical surfaces, grooving, and cutting, etc. CM61L/A type integral structure floor lathe technical parameters Model CM611200L CM611600L CM612200A CM612500A P...
CM62A/B/C Split Structure Floor Lathe CM622500A...

Short Description:

The CM62B and CM62C floor-standing lathes have a split structure. The CM62B uses a medium-sized spindle box while the CM62C uses a heavy-duty spindle box. The difference from the overall structure is that it has a larger rotation diameter. Users can adjust its rotation diameter within a reasonable range, which is suitable for processing large-diameter and heavy-weight workpieces. CM62A/B/C...
CM61B Integral Structure Floor Lathe CM612200B/...

Short Description:

The CM61B floor-standing lathe has an integral structure and adopts a medium-sized spindle box. The difference from the CM61A is that it has a larger load-bearing capacity and is suitable for processing heavier workpieces. model number CM612200B CM612500B CM612800B Technical parameters Ordinary type Standard type Ordinary type Standard type Ordinary type Standard type ...
Horizontal Metal Turning Lathe Machine CQ6240

Short Description:

MODEL CQ6240 Swing over bed Φ400mm Swing over cross slide Φ250mm Swing in gap(D×W) 520mm×100mm Height of center 200mm Distance between centers 1080mm Turning Length 700-750mm Width of bed 218mm Max. section of cutting tool 20mm×20mm Guide Length of carriage 350-365 Graduation of Longitudinal scale on apron boxhand wheel 0.2mm Total travel of cross slide 230mm Graduati...

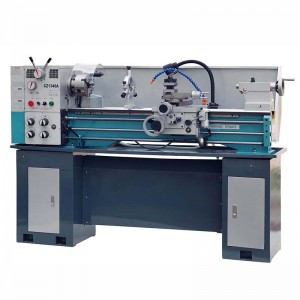

Bench Lathe CZ1340A

Short Description:

BENCH LATHE MACHINE FEATURES: The clutch inside headstock realize the spindle to change FWD/REV direction. It avoids electric motor to be changed frequently Supersonic frequency hardened bed ways Precision roller bearing for spindle High quality steel, ground and hardened gear inside headstock Easy and fast operating gear box Enough strong power motor ASA D4 camlock spindle nose Various thread ...

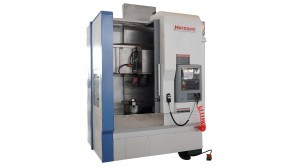

CNC Vertical lathe machine VTC650

Short Description:

VTC650 (L) vertical CNC lathe can process all kinds of short shaft and disk parts, and can turn all kinds of threads, arcs, and internal and external surfaces, end faces, and grooves of revolving bodies. It is applicable to the processing of parts with large batch, high processing accuracy and high dimensional consistency requirements. This series of machine tools are widely used in the automob...

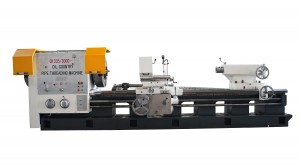

Turning Metalworking Pipe-Threading Manual Lath...

Short Description:

Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread. This series lathe machin...
Universal Lathe C6250C C6266C C6280C

Short Description:

Product Feature 1. The surface of the bedways is supersonic frequency handened. 2. The spindle bore size is 80mm.The spindle system is high in rigid and accuracy. 3. Rapid feed structure is available on Apron. 4. Clutch in headstock makes the lathe more safe and reliable. TEMS C6250C C6266C C6280C 1000/1500/2000/3000/4000mm Max. swing over bed 500mm 660mm 800mm Max. swing over ca...

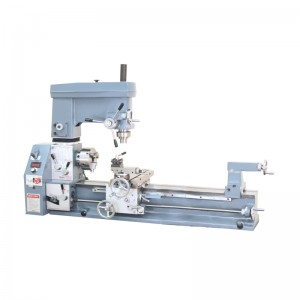

mill drill lathe machine G1324 G1340

Short Description:

INTRODUCTION: 1.Has the purposes of turning, drilling, milling, boring & thread-cutting 2.DC brushless motor, big torque at low speed, infinitely variable speed 3.Power-driven for table in milling 4.Cam clamping chuck 5.Lengthened table Features: 1.Has the devices of safety interlock & an overload safety 2.Lengthened drilling/milling box, 360 degree rotation in vertical plane &n...

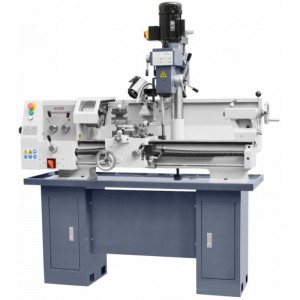

mini lathe machine AT320

Short Description:

FEATURES: The machine is a combined multi-purpose machine,possessing the functions like cutting,drilling and milling,12-grade spindle gearshift for cutting,big spindle holes and big chuck.The machine can power feed crossly or longitudinally,power feed anti-direction without stopping cutting. With the added control rod,it’s has 4 gearshift for drilling and milling.The drilling and milling head c...
Heavy Duty Lathe CW61125D CW61140D CW61160D CW6...

Short Description:

FEATURES: These lathes can perform to turn end faces, cylindrical surfaces and intemal holes of marious parts as well as metric, inch, module and pitch threads. The top slides can be operated indivedu - ally by power for cutting short taper surface also, can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be...
Heavy Duty Lathe CW61125N CW61140N CW61160N CW6...

Short Description:

These lathes can perform to turn end-faces,cylindrical surfaces and internal holes of various parts as well as metric, inch,module and pitch threads. The top tool post can be operated individually by power for cutting short taper surface.It also can turn automatically long taper by the compound movement combining longitudinal feed with the top slide feed.Moreover the machines may be used for dr...
Heavy Duty Lathe CW61125L CW61140L CW61160L CW6...

Short Description:

These lathes can perform to turn endfaces, cylindrical surfaces and intemal holes of marious parts as well as metric, inch, module and pitch threads. The top slides can be operated indivedu-ally by power for cutting short taper surface also, can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be used for drill...
Heavy Duty Lathe CW61125H/1 CW61140H/1 CW61160H...

Short Description:

FEATURES: These lathes can perform to turn endfaces, cylindrical surfaces and intemal holes of marious parts as well as metric, inch, module and pitch threads. The top slides can be operated indivedu-ally by power for cutting short taper surface also, can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be used...
Heavy Duty Lathe CW61125H CW61140H CW61160H CW6...

Short Description:

These lathes can perform to turn endfaces, cylindrical surfaces and intemal holes of marious parts as well as metric, inch, module and pitch threads. The top slides can be operated indivedu-ally by power for cutting short taper surface also, can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be used for drill...
Turning And Boring Lathe C5123 C5125 C5131

Short Description:

VERTICAL LATHE FEATURES: 1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted, severance of car wheel lathe. 2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing is good. 3. Gear case is to use 40 Cr g...
Turning And Boring Lathe C518 C5112 C5116

Short Description:

VERTICAL LATHE FEATURES: 1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted, severance of car wheel lathe. 2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing is good. 3. Gear case is to use 40 Cr g...
Universal Lathe CS6166 CS6266 CS6166B CS6266B

Short Description:

GAP BED LATHE FEATURES: Can perform internal and external turning, taper turning, end facing, and other rotary parts turning; Threading Inch, Metric, Module and D.P.; Perform drilling, boring and groove broaching; Machine all kinds of flat stocks and those in irregular shapes; Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; Both Inch and Metric system ...

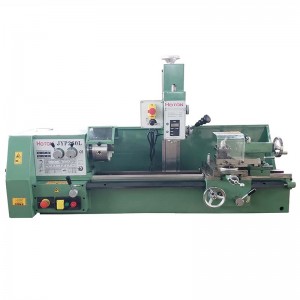

Combo Lathe/Mill JYP260 JYP260L

Short Description:

COMBINATION LATHE JYP260/JYP260L Most popular ,widely useful combination machine V-way bed is precision ground Gear head enables to change speed quickly MT4 spindle hole gets more capacity Spindle is supported by precision bearing T-slotted cross slide Power longitudinal feed allows threading Adjustable gids for slideways Top design of gearbox gets more function Mill head can be tilted ± 90...

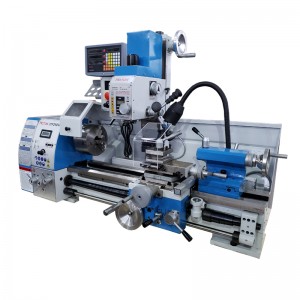

Combo Lathe/Mill JYP280V

Short Description:

MULTI PURPOSE BENCH LATHE Most popular ,widely useful combination machine V-way bed is hardened and precision ground Spindle is supported by precision tapered roller bearing MT4 Spindle hole gets greater capacity T-slotted cross slide Power longitudinal feed allows threading Adjustable gids for slideways Top design of gearbox gets more function Spindle feeding handle with softgrip for perfe...
