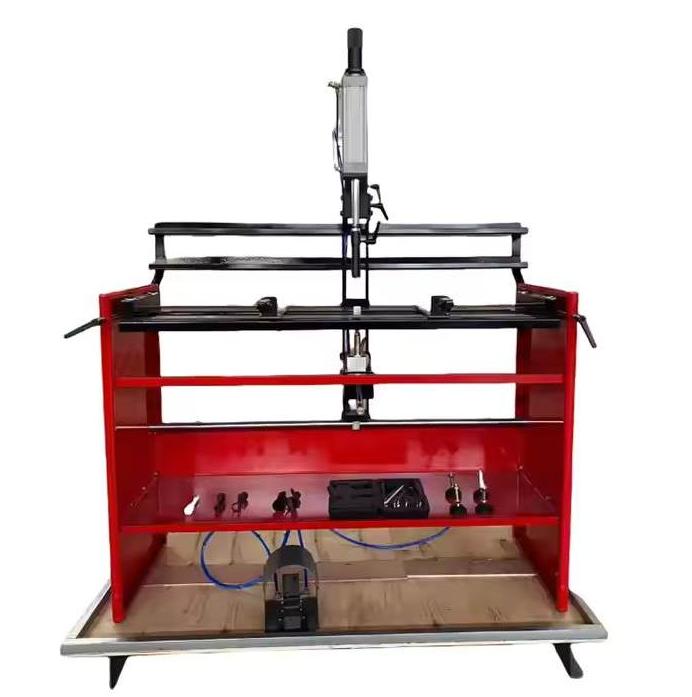

LD1300 Cylinder head spring disassembly machine
This workbench can quickly disassemble and assemble cylinder headspring, suitable for integral assembly and split of cylinder headThe table can quickly adjusts the angles, suitable for various anglesof the cylinder head.Universal telescopic cylinder is used to compress various angle springs.Equipped with a full set of valve lock disassembly tools.
| Model | LD1300 |
| Machine space requirements | |
| Length | 1500mm |
| Width | 700mm |
| Length | 1800mm |
| Machine capabilities | |
| Max. Length of the cylinder head | 1300mm/51.18” |
| Max. Width of the cylinder head | 360mm/14.1” |
| Max. Height of the cylinder head | 230mm/9” |
| Universal cylinder stroke | |
| lengthwise | 1300mm |
| crosswise | 200mm |
| Air pressure | 6bar/87psi |
| Net weight(approx) | 150kg/330 1bs |
| Packing size(LxWxH) | 1620x820x1500mm |
