Manufacturer for Lathe Machine - CNC Flat Bed Lathe Machine CK6136 – Hoton Detail:

CNC LATHE MACHINE PRICE

Main feature:
The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiencyStandard

toolpost is 4 stationsSpindle speed changed by frequencyInduction harden bed way, bed saddle with plastic sticker can improve

the accuracy and service life of the machineThe spindle is supported by imported precision bearing.Normally machine is provide

with 3 jaw chuck. According to customer's optional selection, hydraulic chuck or pneumatic chuck also can be supplied

STANDARD ACCESSORY	OPTIONAL ACCESSORY
3 jaw chuck and tool post wrench	6-station toolpost
allen wrench	pneumatic chuck
electrical tool post	hydrualic chuck
cooling system	bar atuo-fedding device
manual lubricating system	simens 802 system
working lamp	auto-lubricating system
GSK CNC system
iron casting stand

MODEL	CJK6132	CK6136
Swing over bed	Φ320mm	Φ360mm
Swing over camiage	Φ150mm	Φ150mm
Distance between centers	500mm/750/1000mm	500mm/750/1000mm
Taper of barrel	M.T.5	Through hole
Spindle hole	Φ38mm	Φ51mm
Range of speed(variable)	100~2500r/min	100~2500r/min
Feed motor power(X/Z)	46N.M/6N.M(Step motor)	4N.M/6N.M(Step motor)
X rapid traverse	5m/min	6m/min
Z rapid traverse	5m/min	6m/min
Max. travel of X axis	160mm	170mm
Max. travel of Z axis	400/650/900mm	400/650/900mm
Motor power	3Kw	3Kw
Tool-post	4 stations or 6 stations	4 stations or 6 stations
Max.tool size	16×16mm	16×16mm
Min input unit	0.001mm	0.001mm
Repeatability accuracy(X/Y)	0.016mm	0.01mm
Barrel travel of tailstock	150mm	130mm
Barrel taper of tailstock	M.T.3	M.T.3
Packing size(L×W×H)	1850×1100×1650mm 1900×1100×1650mm 2300×1100×1650mm	1850×1100×1650mm 1900×1100×1650mm 2300×1100×1650mm
N.W.	800/900/1000kg	1400/1500/1600kg
G.W.	1000/1100/1200kg	6pcs/21' container

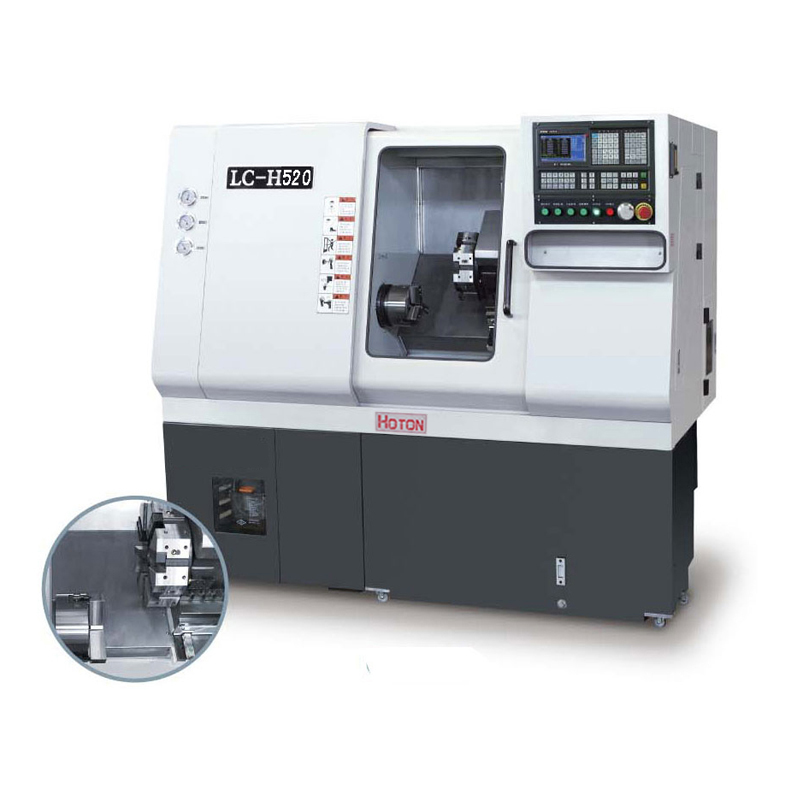

Product detail pictures:
