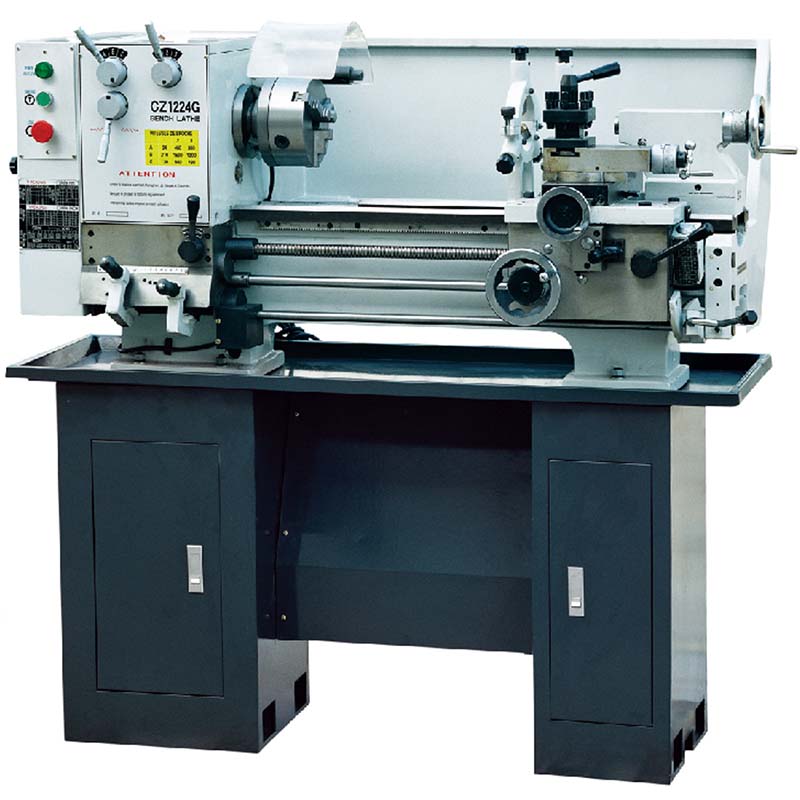

New Fashion Design for Bending Machine - Bench Lathe-CZ1224G 1237G 1324G 1337G – Hoton Detail:

BENCH LATHE FEATURES:
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
Inching switch for test running
Metric/imperial thread available
Precise gear-driven headstock

SPECIFICATIONS:

ITEM		CZ1224G	CZ1237G	CZ1324G	CZ1337G
Swing over bed	mm	φ305	φ305	φ330	φ350
Swing over carriage	mm	φ173	φ173	φ195	φ215
Swing over gap	mm	φ440	φ440	φ465	φ485
Width of bed-way	mm	182	182	182	182
Distance between centers	mm	530	940	530	940
Spindle taper		M.T.5	M.T.5	M.T.5	M.T.5
Spindle bore	mm	φ38	φ38	φ38	φ38
Step of speed		9	9	9	9
Range of speed	rpm	64~1500	64~1500	64~1500	64~1500
Metric thread		15kinds (0.25~7.5mm)	15kinds (0.25~7.5mm)	15kinds (0.25~7.5mm)	15kinds (0.25~7.5mm)
Inch thread		40kinds(4~112T.P.I)	40kinds(4~112T.P.I)	40kinds(4~112T.P.I)	40kinds(4~112T.P.I)
Range of feed amount	mm/r	0.12~0.42(0.0047”~0.0165)	0.12~0.42(0.0047”~0.0165)	0.12~0.42(0.0047”~0.0165)	0.12~0.42(0.0047”~0.0165”)
Diameter of lead screw	mm	φ22(7/8”)	φ22(7/8”)	φ22(7/8”)	φ22(7/8”)
Pitch of lead screw		3mm or 8T.P.I	3mm or 8T.P.I	3mm or 8T.P.I	3mm or 8T.P.I
Saddle travel	mm	510	850	510	850
Cross travel	mm	150	150	150	150
Compound travel	mm	90	90	90	90
Barrel travel	mm	100	100	100	100
Barrel diameter	mm	φ32	φ32	φ32	φ32
Taper of center	mm	M.T.3	M.T.3	M.T.3	M.T.3
Motor power	Kw	1.1(1.5HP)	1.1(1.5HP)	1.1(1.5HP)	1.1(1.5HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)	0.04(0.055HP)	0.04(0.055HP)	0.04(0.055HP)
Machine(L×W×H)	mm	1420×750×760	1780×750×760	1420×750×760	1780×750×760
Stand(left) (L×W×H)	mm	400×370×700	400×370×700	400×370×700	400×370×700
Stand(right) (L×W×H)	mm	300×370×700	300×370×700	300×370×700	300×370×700
Machine	Kg	380/430	395/445	382/432	400/450
Stand	Kg	60/65	60/65	60/65	60/65

Product detail pictures:
