Customized Bandsaw GH4240 with K12 Series Self-Centering Chuck

OEM Customized Bandsaw Gh4240 - K12 SERIES FOUR-JAW SELF-CENTERING CHUCK – Hoton

Short Description:

K12 SERIES FOUR-JAW SELF-CENTERING CHUCK FOUR JAW SELF CENTRING CHUCK FOUR JAW SELF CENTRING CHUCK is suitable for batch process of square,eight-square prism accesspries and is self centering SPECIFICATIONS: Size D D1 D2 D3 H H1 h Z-d K1280 55 66 16 66 50 3.5 3-M6 K12100 72 84 22 74.5 55 3.5 3-M8 K12125 95 108 30 84 58 4 3-M8 K12130 100 115 30 86 60 3.5 3-M8 K12160 130 142 40 95 65 5 3-...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

To regularly increase the management program by virtue from the rule of "sincerely, good religion and high quality are the base of enterprise development", we greatly absorb the essence of linked products internationally, and constantly produce new goods to satisfy the calls for of shoppers for Lathe Cd6250b , Desktop Lathe , Vertical Turret Milling Machine , Our customers mainly distributed in the North America, Africa and Eastern Europe. we will source top quality goods using the really aggressive selling price.

OEM Customized Bandsaw Gh4240 - K12 SERIES FOUR-JAW SELF-CENTERING CHUCK – Hoton Detail:

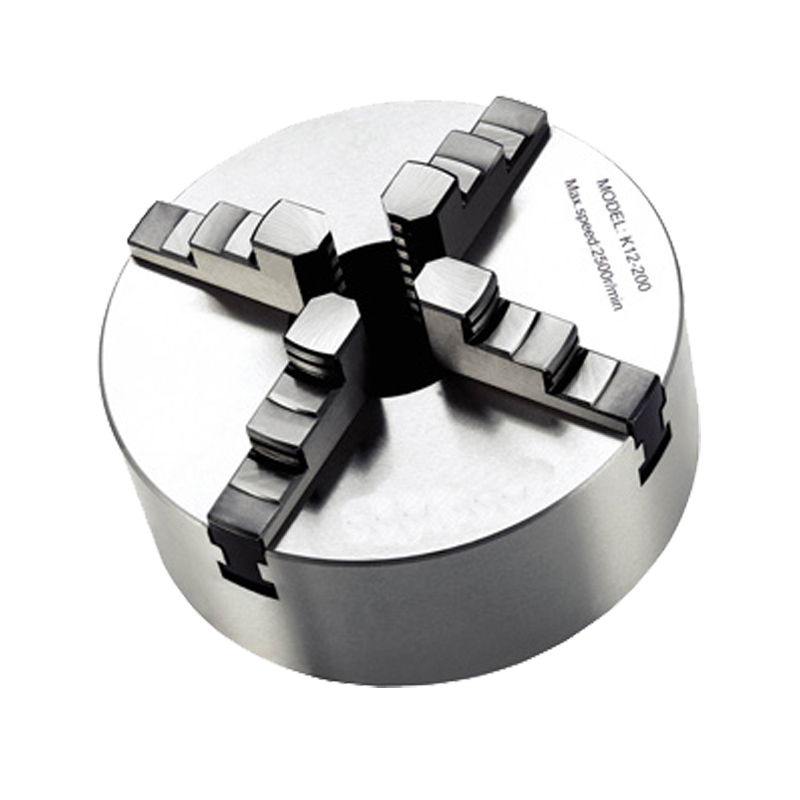

K12 SERIES FOUR-JAW SELF-CENTERING CHUCK

FOUR JAW SELF CENTRING CHUCK

FOUR JAW SELF CENTRING CHUCK is suitable for batch process of square,eight-square prism accesspries and is self centering

SPECIFICATIONS:

Size D	D1	D2	D3	H	H1	h	Z-d
K1280	55	66	16	66	50	3.5	3-M6
K12100	72	84	22	74.5	55	3.5	3-M8
K12125	95	108	30	84	58	4	3-M8
K12130	100	115	30	86	60	3.5	3-M8
K12160	130	142	40	95	65	5	3-M8
K12160A		142	40	109	65	5	3-M8
K12165	130	145	40	96.5	66.5	4.5	3-M8
K12165A	130	145	40	110.5	66.5	4.5	3-M8
K12190	155	172	55	109	75	5	3-M10
K12190A		172	55	122	75	5	3-M10
K12200	165	180	65	109	75	5	3-M10
K12200A	165	180	65	122	75	5	3-M10
K12250	206	226	80	120	80	5	3-M12
K12250A	206	226	80	136	80	5	3-M12
K12315	260	285	100	142.5	90	6	3-M16
K12315A	260	285	100	155.5	90	6	3-M16
K12320	270	290	100	142.5	90	6	3-M16
K12320A	270	290	100	155.5	90	6	3-M16
K12325	272	296	100	142.5	90	6	3-M16
K12325A	272	296	100	155.5	90	6	3-M16
K12380	325	350	130	155.5	100	6	3-M16
K12380A	325	350	130	171.5	100	6	3-M16
K12400	340	368	130	155.5	100	6	3-M16
K12400A	340	368	130	171.5	100	6	3-M16
K12500A	440	465	200	203	115	6	6-M16
K12630A	560	595	260	218	130	7	6-M16
K12800A	710	760	385	249	148	8	6-M20
K121000A	910	950	460	266	165	8	6-M24

Product detail pictures:
