OEM Factory for Grinder Sga30100 - CNC Slotter Machine BK5018 – Hoton Detail:
DESCRIPTION OF GOODS:
1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,
Enterprise suitable for single or small batch production.
Machine parameters:
|
SPECIFICATION |
UNIT |
BK5018 |
|
Ram maximum slotting length |
mm |
180 |
|
Ram stroke adjustment |
mm |
80 |
|
Ram per minute motion data |
N/min |
46/60/90 |
|
Work table size |
mm |
600X320 |
|
Table travel (X,Y) |
mm |
460X320 |
|
The knife head supporting hole axis to distance of upright column for arm |
mm |
400 |
|
The knife head supporting hole end to table working distance |
mm |
480 |
|
X to the motor torque |
N.M |
6 |
|
Y to the motor torque |
N.M |
6 |
|
Fast moving |
X(m/min) |
5 |
|
Ball screw X |
FFZD3205-3/P4 |
|
|
Ball screw Y |
FFZD3205-3/P4 |
|
|
The main motor power |
K w |
1.5/2/2.2 |
|
Machine weight |
kg |
1500 |
|
Ram maximum slotting length |
mm |
180 |

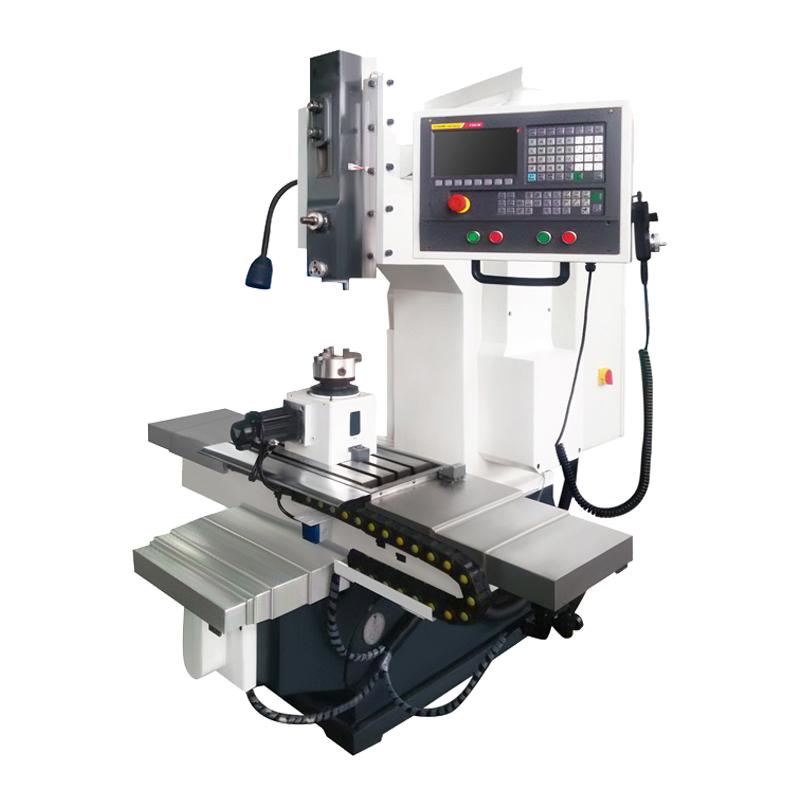

Product detail pictures:
