PriceList for Shaper Machine - Bench Lathe CZ1237G/1 CZ1337G/1 – Hoton Detail:

MANUAL LATHE MACHINE
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
ASA D4 cam-lock spindle nose
Various thread cutting function
SPECIFICATIONS:

ITEM		CZ1237G/1	CZ1337G/1
Swing over bed	mm	φ305	φ350
Swing over carriage	mm	φ173	φ215
Swing over gap	mm	φ440	φ485
Width of bed-way	mm	182	182
Distance between centers	mm	940	940
Spindle taper		M.T.5	M.T.5
Spindle bore	mm	φ38	φ38
Step of speed		9	9
Range of speed	rpm	64~1500	64~1500
Head		D1-4	D1-4
Metric thread		26kinds (0.4~7 mm)	26kinds (0.4~7 mm)
Inch thread		34kinds(4~56T.P.I)	34kinds(4~56T.P.I)
Longitudinal feeds	mm/r	0.052~1.392	0.052~1.392
Cross feeds	mm/r	0.014~0.38	0.014~0.38
Diameter of lead screw	mm	φ22(7/8”)	φ22(7/8”)
Pitch of lead screw		3mm or 8T.P.I	3mm or 8T.P.I
Saddle travel	mm	810	810
Cross travel	mm	150	150
Compound travel	mm	90	90
Barrel travel	mm	100	100
Barrel diameter	mm	φ32	φ32
Taper of center	mm	M.T.3	M.T.3
Motor power	Kw	1.1(1.5HP)	1.1(1.5HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)	0.04(0.055HP)
Machine(L×W×H)	mm	1780×750×760	1780×750×760
Stand (right)(L×W×H)	mm	400×370×700	400×370×700
Stand (right)(L×W×H)	mm	300×370×700	300×370×700
Machine	Kg	390/440	395/445
Stand	Kg	60/65	60/65

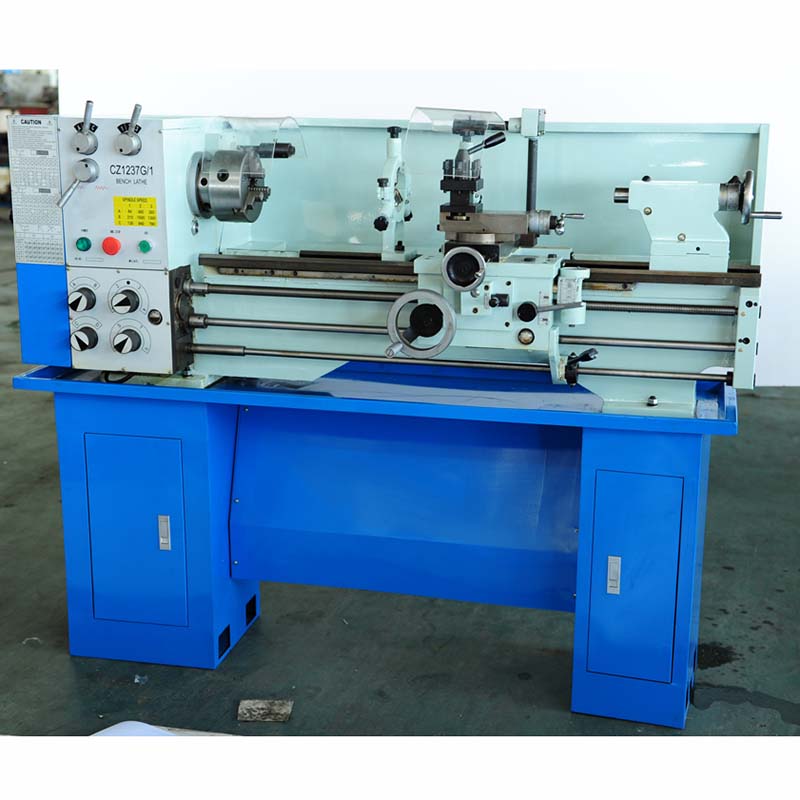

Product detail pictures:
