Professional China Cnc Turning Lathe - CNC Flat Bed Lathe Machine J35 – Hoton Detail:

HARD GUIDE WYA CNC LATHE

Frequency stepless speed

With servo system

4 station electric turret

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

GSK980TDC or Siemens 808d NC systeminverter motor 3kw4 station gang type tool postspring collet

KND100Ti or Fanuc 0I mate-TDservo motor 3.7/5.5 kwinverter motor 4 kw4 station electric turret

5" manual chuck

6" manual chuck

tailstock

auto feeder device

SPECIFICATION:

SPECIFICATION	J32	J35
Max.swing over bed	190 mm	230 mm
Max.swing over cross slide	80mm	125mm
Max.processing length	200 mm	200 mm
Spindle bore	37 mm	50 mm
Max. diameter of the bar	32 mm	41 mm
Spindle nose	A2-4	A2-5
Spindle speed	150-2500 rpm	150-2500 rpm
Spindle motor power	3 kw	3 kw
X/Z axis travel	300/320 mm	300/320 mm
X/Z axis torque	1/1 kw	1/1 kw
X/Z axis rapid feeding speed	8/10 m/min	8/10 m/min
X/Z axis position accuracy	0.01/0.015 mm	0.01/0.015 mm
X/Z axis repeatability	0.012/0.013 mm	0.012/0.013 mm
Tool bar section	16*16 mm	16*16 mm
Tailstock sleeve dia.	45mm optional	45mm optional
Tailstock sleeve travel	50 mm optional	50 mm optional
Tailstock taper	MT4# optional	MT4# optional
N.W.	800 kg	850 kg
Machine dimension(LWH)	145011001600 mm	142011201750 mm

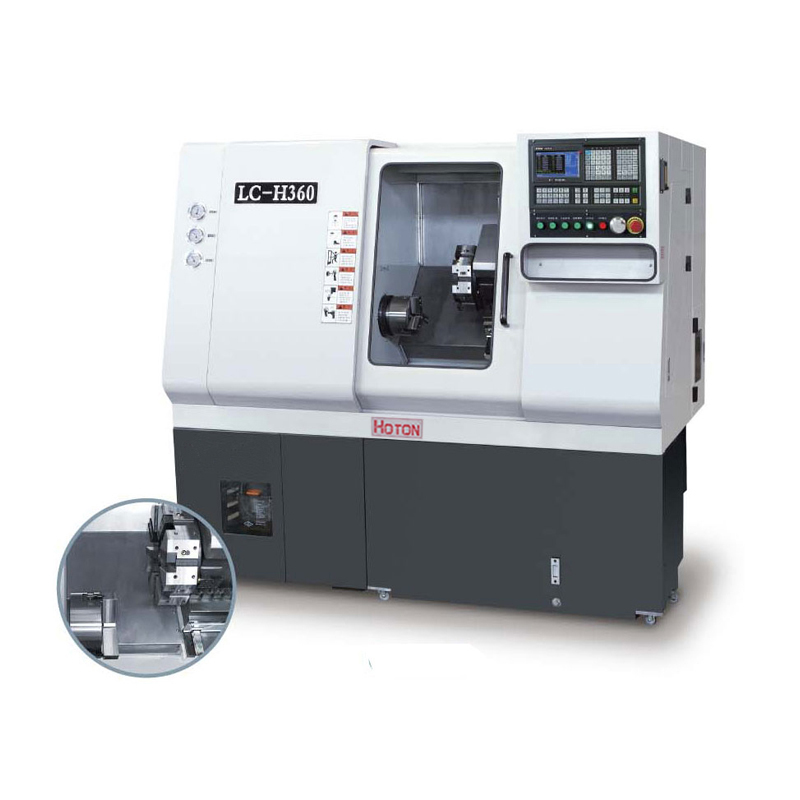

Product detail pictures:
