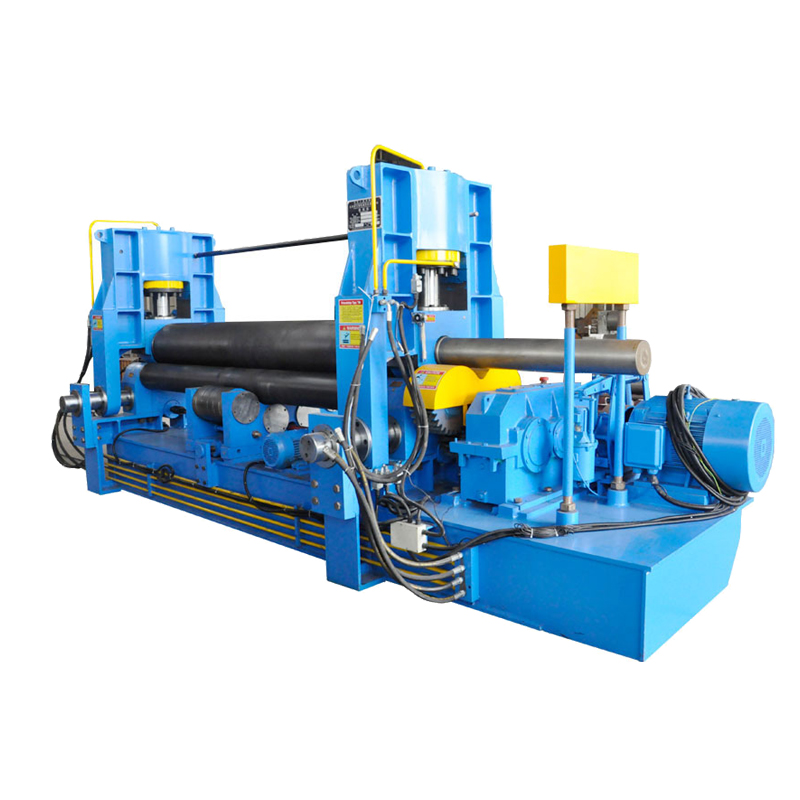

Well-designed Bordering Machine - Slip Roller W11 – Hoton Featured Image
  • Well-designed Bordering Machine - Slip Roller W11 – Hoton
  • Well-designed Bordering Machine - Slip Roller W11 – Hoton

Well-designed Bordering Machine - Slip Roller W11 – Hoton

Short Description:

MECHANICAL TYPE THREE ROLLER ROLLING AND BENDING MACHINE FROM HOTON MACHINERY   This machine structure pattern three roller symmetrical type, the roller in two central symmetrical Position under the roller moves vertically through the screw worm and silk mother, The two lower Rollers rotates through the gear reducer output and lower rollers Gear mesh, to provide torque for The roll sheet. The machine disadvantage is that end plate bending requires the use of other devices. PARAMETER OF G...


Download as PDF

Product Detail

Product Tags

Related Video

Feedback (2)

We keep on with the basic principle of "quality to start with, support very first, continuous improvement and innovation to meet the customers" for your management and "zero defect, zero complaints" as the quality objective. To great our service, we offer the items with all the superior top quality at the reasonable selling price for Metal Cutting Bandsaw , Tube And Profile Bending Machine , Brake Drum Lathe Machine , Quality is factory's lifestyle , Focus on customers' demand could be the source of corporation survival and advancement, We adhere to honesty and great faith operating attitude, looking ahead on your coming !
Well-designed Bordering Machine - Slip Roller W11 – Hoton Detail:

MECHANICAL TYPE THREE ROLLER ROLLING AND BENDING MACHINE FROM HOTON MACHINERY



This machine structure pattern three roller symmetrical type, the roller in two central symmetrical
Position under the roller moves vertically through the screw worm and silk mother, The two lower
Rollers rotates through the gear reducer output and lower rollers Gear mesh, to provide torque for
The roll sheet. The machine disadvantage is that end plate bending requires the use of other devices.

PARAMETER OF GOODS

Model Max. thickness Max. width Bending
speed		 Workpiece
Min. Dia.		 Top roller
Dia		 Bottom roller Dia. Dis. bottom rollers Main motor Net weight
(About)
W11-4*3000 4mm 3000mm 5m/min 450mm 140mm 160mm 220mm 5.5kw 3200kgs
W11-6*2000 6mm 2000mm 5m/min 430mm 170mm 170mm 220mm 5.5kw 2890kgs
W11-6*2500 6mm 2500mm 4m/min 550mm 220mm 170mm 250mm 7.5kw 3200kgs
W11-6*3000 6mm 3000mm 4m/min 600mm 240mm 190mm 280mm 7.5kw 4500kgs
W11-8*2000 8mm 2000mm 5m/min 480mm 190mm 170mm 220mm 5.5kw 3300kgs
W11-8*2500 8mm 2500mm 4m/min 600mm 240mm 180mm 280mm 7.5kw 4200kgs
W11-8*3000 8mm 3000mm 4m/min 600mm 240mm 180mm 280mm 11kw 5200kgs
W11-10*2000 10mm 2000mm 4m/min 550mm 220mm 170mm 250mm 7.5kw 4100kgs
W11-10*3000 10mm 3000mm 4m/min 650mm 260mm 220mm 340mm 11kw 5800kgs
W11-12*2000 12mm 2000mm 4m/min 600mm 240mm 180mm 280mm 7.5kw 4800kgs
W11-12*2500 12mm 2500mm 4m/min 650mm 260mm 220mm 320mm 11kw 5800kgs
W11-12*3000 12mm 3000mm 4m/min 700mm 280mm 240mm 360mm 15kw 8000kgs
W11-16*1500 16mm 1500mm 5m/min 600mm 240mm 180mm 280mm 7.5kw 4200kgs
W11-16*2000 16mm 2000mm 4m/min 650mm 260mm 220mm 320mm 11kw 5050kgs
W11-16*2500 16mm 2500mm 4m/min 700mm 280mm 240mm 360mm 15kw 6500kgs
W11-16*3200 16mm 3200mm 4m/min 850mm 340mm 280mm 440mm 18.5kw 8500kgs
W11-20*2000 20mm 2000mm 4m/min 700mm 280mm 240mm 360mm 11kw 6450kgs
W11-20*2500 20mm 2500mm 4m/min 850mm 340mm 280mm 440mm 18.5kw 8500kgs
W11-20*3000 20mm 3000mm 4m/min 930mm 370mm 280mm 440mm 22kw 11500kgs
W11-25*2000 25mm 2000mm 4m/min 850mm 340mm 280mm 440mm 18.5kw 8400kgs
W11-25*2500 25mm 2500mm 4m/min 930mm 370mm 280mm 480mm 22kw 12500kgs
W11-30*2000 30mm 2000mm 4m/min 930mm 370mm 280mm 480mm 22kw 12000kgs
Product detail pictures:

Well-designed Bordering Machine - Slip Roller W11 – Hoton detail pictures

Well-designed Bordering Machine - Slip Roller W11 – Hoton detail pictures
