TXM170A TXM200A TXM250A Vertical Fine Boring ...
Short Description:
MAIN FEATURE 1.Stepless of spindle turning,feeding. 2.Rotating speed snd feed of spindle is free-setup,automatical returning of spindle can be realized. 3.Longitudinal and cross movement of table 4.Complete set of accessories of boring,drilling & reaming and easy exchange 5.Spindle fast centering device 6.Tool measuring device 7.Boring depth contorl device. 8.Table with digital readout f...
-
TX1500 TX2150 TX2500 Cylinder Boring Milling Ma...
Short Description:
Stepless of spindle turning ,feeding and table travelling Rotating speed and feed of spindle as well as the movement of worktable is free-setup, automatical retuming of spindle can be realized Longitudingal and cross movement of table Complete set of accessories of boring, milling, drilling & reaming and easy exchange Tool fast centering device Tool measuring device Boring depth control ...
-
TX170A TX200A TX250A Vertical Fine boring &...
Short Description:
1. Stepless of spindle turning, feeding and table travelling. 2. Rotating speed and feed of spindle as well as the movement of worktable is free-setup, automatical returning of spindle can be realized. 3. Longitudingal and cross movement of table. 4. Complete set of accessories of boring, milling drilling & reaming and easy exchange. 5. Spindle fast centering device. 6. Tool measuring devic...
-
TH170D Vertical Fine Honing Machine
Short Description:
Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks. Honing spindle with steplessly variable ratation speed visualized on the control panel. Characteristics: 1. The spi...
-
T170A T200A T250A Vertical Fine Boring Machine
Short Description:
Main Features: 1. Stepless of spindle turning, feeding and table travelling. 2. Rotating speed and feed of spindle as well as the movement of worktable is free-setup, automatical returning of spindle can be realized. 3. Longitudingal and cross movement of table. 4. Complete set of accessories of boring, milling, drilling & reaming and easy exchange. 5. Spindle fast centering device. 6. Tool...
-
BM160 Vertical Fine Boring -Milling Machine
Short Description:
Feature: 1. EasyTouch operating system The left and right movement of the table, the up and down of the spindle, as well as the rotation of the spindle, are all driven by a servo motor, which by combing with the specific EasyTouch system, achieves the accurate numerical control of three-axis movement on the whole machine. 2. Small size to output high torque BM160 is in compact design, with its ...
-

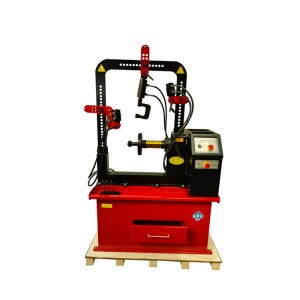

HT-60 Rim straightener machine without turning...
Short Description:
Specification Dimension(L*W*H) 1300*800*1400mm Weight 360kgs Maximum wheel hub diameter: 650mm(26”) Maximum wheel hub width: 550mm (22”) 550mm(22”) Working pressure 15mpa Voltage 220V/380V Power 1.5KW/0.75KW Speed range of spindle 0-1000r/min Stepless speed regulation
-

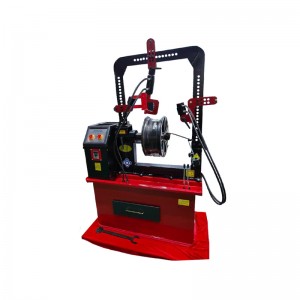

XLZ-70 Wheel Straightening Machine
Short Description:
The machine has a complete set of core tools and components. At the same time, the machine has stepless speed change. So the machine has functions of Offset distance detection,positioning mark, rim straightening, turning cutting,surface polishing etc. It is most advanced alloy wheel repair equipment. tem Specification Dimension(L*W*H) 1300*800*1400mm Weight 360kgs Maximum ...
-

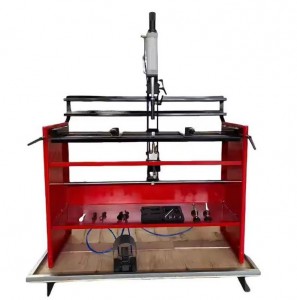

LD1300 Cylinder head spring disassembly machine
Short Description:
This workbench can quickly disassemble and assemble cylinder headspring, suitable for integral assembly and split of cylinder headThe table can quickly adjusts the angles, suitable for various anglesof the cylinder head.Universal telescopic cylinder is used to compress various angle springs.Equipped with a full set of valve lock disassembly tools. Model LD1300 Machine space requirements ...
-

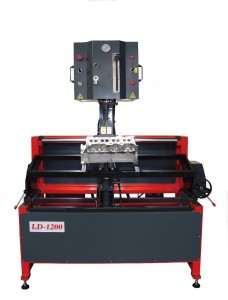

LD-1200 Valve Seat Boring Machine
Short Description:
22 dismounting guide pilots for Ø4 to Ø12 guides(inside diameter) 7 seat drivers for Ø20 Ø90 seats 3 unmounting springs tools Ø24, Ø30 et Ø38 2 barres de bridage Model LD-1200 Max cylinder head dimensions Length 1350mm width 415mm Dimensions Length 1550 width 900 Height 1980 Travel Vertical travel 150 Horizontal travel 1100 Upper piston travel 150 Lower piston travel...
-

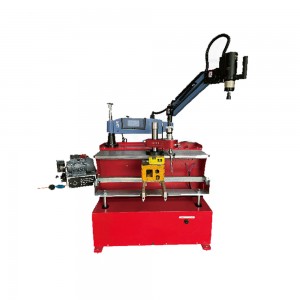

Valve Seat Boring Machine LD-2000
Short Description:
Model LC-2000 Boring capacity 18-65mm Processing radius 1000mm Max. speed 375rpm Rated power 600w Rated voltage 220V-50HZ
-
Boring Cylinder Machine T8014A T8016A
Short Description:
Model T8014A T8016A Boring diameter Φ65-Φ140mm Φ80-Φ165mm Max.boring depth 300mm 400mm Spindle speed 250,380 r/min 200,300 r/min Spindle feed 0.11 mm/r 0.12 mm/r Spindle rapid reset 636 mm/min 780 mm/min Voltage 220V / 380V 220V / 380V Motor Output 0.25/0.37kw 0.25/0.37kw Motor speed 1440 r/min 1440 r/min Overall dimens...
-

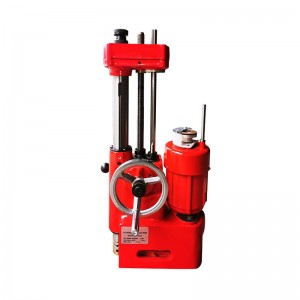

Cylinder Boring MachineT808A
Short Description:
Model T808A Boring diameter 50– 85 mm Max. boring depth 170 mm Spindle speed 394 r/min Spindle feed 0.1 Spindle quick reset Manual Motor power 0.25kw Motor speed 1440r/min Overall dimensions 350x 272x725mm Machine weight 80 kg
-
Vertical Air-floating Fine Boring Machine TB8016
Short Description:
Model TB8016 Boring diameter 39 – 160 mm Max boring depth 320 mm Boring head travel Longitudinal 1000 mm Transversal 45 mm Spindle speed (4 steps) 125, 185, 250, 370 r/min Spindle feed 0.09 mm/s Spindle quick reset 430, 640 mm/s Pneumatic pressure 0.6 < P < 1 Motor output 0.85 / 1.1 Kw V-block fixture patented system 30° 45° V-block fixture patented system (Optio...
-
SBM-100 Cylinder Boring Machine
Short Description:
Model SBM100 Max. Boring Diameter 100mm Min. Boring Diameter 36mm Max. Spindle stroke 220mm Distance between upright and spindle axis 130mm Min. distance between fastening brackets and bench 170mm Max. distance between fastening brackets and bench 220mm Spindle speed 200rpm Spindle feed 0.76mm/rev Motor power 0.37/0.25kw
-

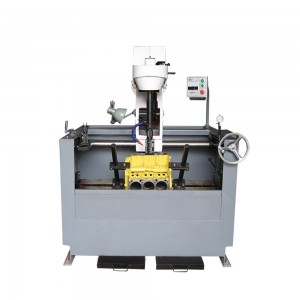

Cylinder Boring Machine 3MB9817J
Short Description:
Model 3MB9817/3MB9817J Honing hole diameter 40-170mm Maximum depth of honing hole 320mm Rotation of main shaft 120,160,225,290r/min Stroke of main shaft 35、44、60s/min Horizontal motion distance of main shaft 900mm Lifting height of machine table 150mm Power of main motor 1.5kw Voltage 3～380V Frequency 50Hz Power of cooling pump 0.125kw Voltage 3～380V Frequency 50H...
-
Cylinder Boring Machine 3MB9817
Short Description:
Model 3MB9817/3MB9817J Honing hole diameter 40-170mm Maximum depth of honing hole 320mm Rotation of main shaft 120,160,225,290r/min Stroke of main shaft 35、44、60s/min Horizontal motion distance of main shaft 900mm Lifting height of machine table 150mm Power of main motor 1.5kw Voltage 3～380V Frequency 50Hz Power of cooling pump 0.125kw Voltage 3～380V Frequency 50H...
-

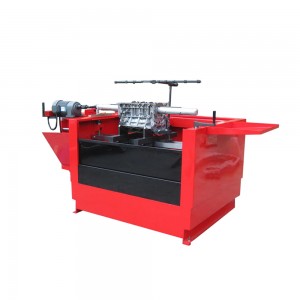

Horizontal Linear Boring & Honing Machine ...
Short Description:
NO ITEMS LBH100 1 Working range Ф46~Ф178 mm 2 Spindle speed 1245 * 232 * 228 mm 3 Power of spindle motor 1.5 KW 4 Power of cooling oil pump 0.12 KW 5 Working cavity (L * W * H) 1140*710*710 mm 6 Physical dimensions of the machine (L * W * H) 3200*1480*1920 mm 7 Max. stroke length of the spindle 660 mm 8 Min. amount of coolant 130 L 9 Max. amount of coo...
-
Valve Grinding Machine LD100A LD100B
Short Description:
Model Unit LD100A LD100B Valve stem dia. mm 3.5-20 3.5-20 Valve head dia. mm 12-100 12-100 Valve length mm 70-450 70-450 Angle grinding range degree 10-57 10-57 Main wheel diameter mm 200 200 Cup wheel diameter mm 100 100 Main wheel width mm 15 15 Grinding wheel travel mm 90 90 Valve feed travel mm 90 90 Spindle motor Power w 750 750 Speed rpm 3600 3600 Valve driv...
-

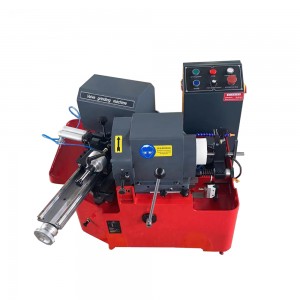

Valve Grinding Machine LD100A
Short Description:
Model Unit LD100A Valve stem dia. mm 3.5-20 Valve head dia. mm 12-100 Valve length mm 70-450 Angle grinding range degree 10-57 Main wheel diameter mm 200 Cup wheel diameter mm 100 Main wheel width mm 15 Grinding wheel travel mm 90 Valve feed travel mm 90 Spindle motor Power w 750 Speed rpm 3600 Valve driving motor Power w 180 Speed rpm 120-750 Coolant motor P...
